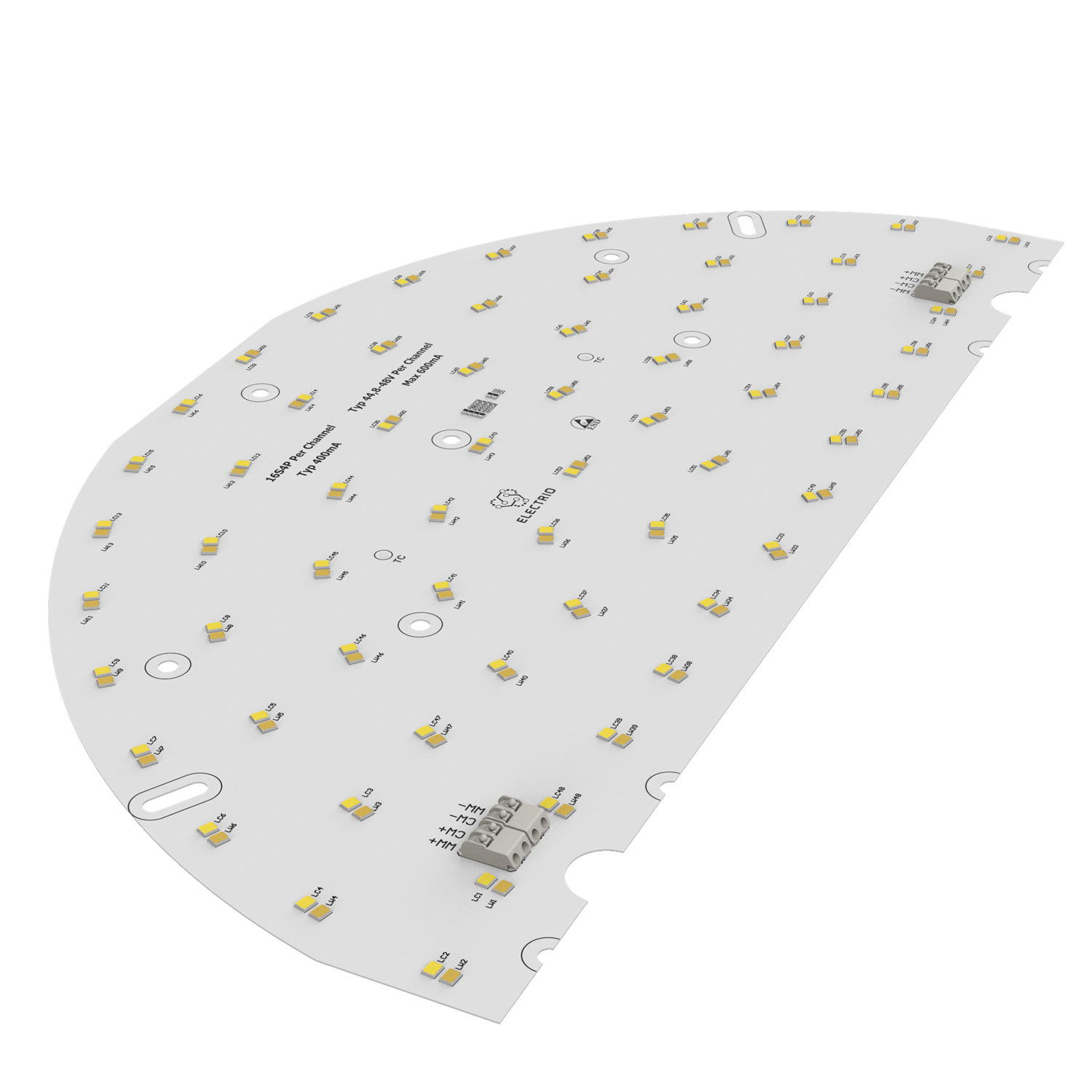

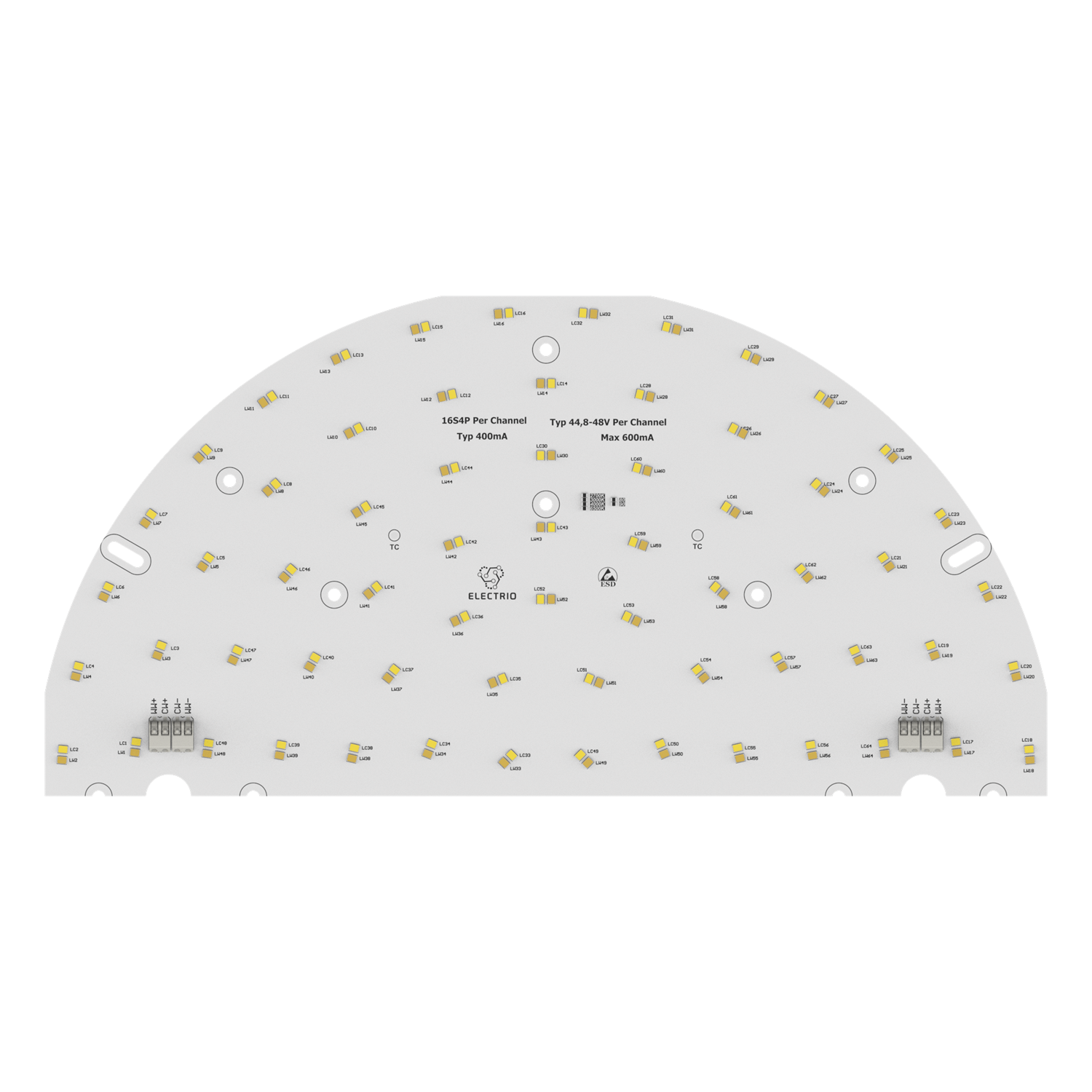

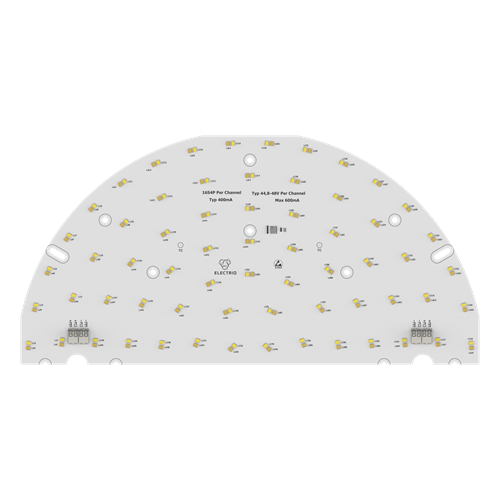

EH-R380-1604-L128-TN
Stock Code: A001087
Constant Color , MacAdams Step 3 Homogeneous illumination
PCB Materiel Aluminum 1.6 mm, Optional Selection
Substrate : ALU/FR4/CEM1/CEM3
PCB Thickness : 1.0/1.6 mm
Copper Weight : 35Um/70Um
Surface Treatment : HASL/OSP
Thermal Conductivity : 1W/1.2W/1.5W/2W
Breakdown voltage : 2000V
  • UL
  • RoHS
  • ESD
  • ENERGY
Module Code EH-R380-1604-L128-TN
PCB Material ALU/FR4/CEM1/CEM3
Serial 16 Operating Temperature(°C) -40 ~ +85
Parallel 4 Storage Temperature(°C) -40 ~ +85
LED Quantity 128 Thermal Conductivity(W/m-k) 1W/mk

LED L128-4080SA35A00A1
Correlated Color Temperature (CCT) 2700K
Color Rendering Index (CRI) 80
Module Operating Current (mA) 250 350 500
Module Operating Voltage (V) 44,00 44,80 45,76
Module Light Output (lm) 1978 2724 3805
Module Power (W) 11,00 15,68 22,88
Module Efficiency (lm/W) 179,8 173,7 166,3

LED L128-4080SA35A00A1
Correlated Color Temperature (CCT) 6500K
Color Rendering Index (CRI) 80
Module Operating Current (mA) 250 350 500
Module Operating Voltage (V) 44,00 44,80 45,76
Module Light Output (lm) 2099 2882 4013
Module Power (W) 11,00 15,68 22,88
Module Efficiency (lm/W) 190,8 183,8 175,4
