Click for view

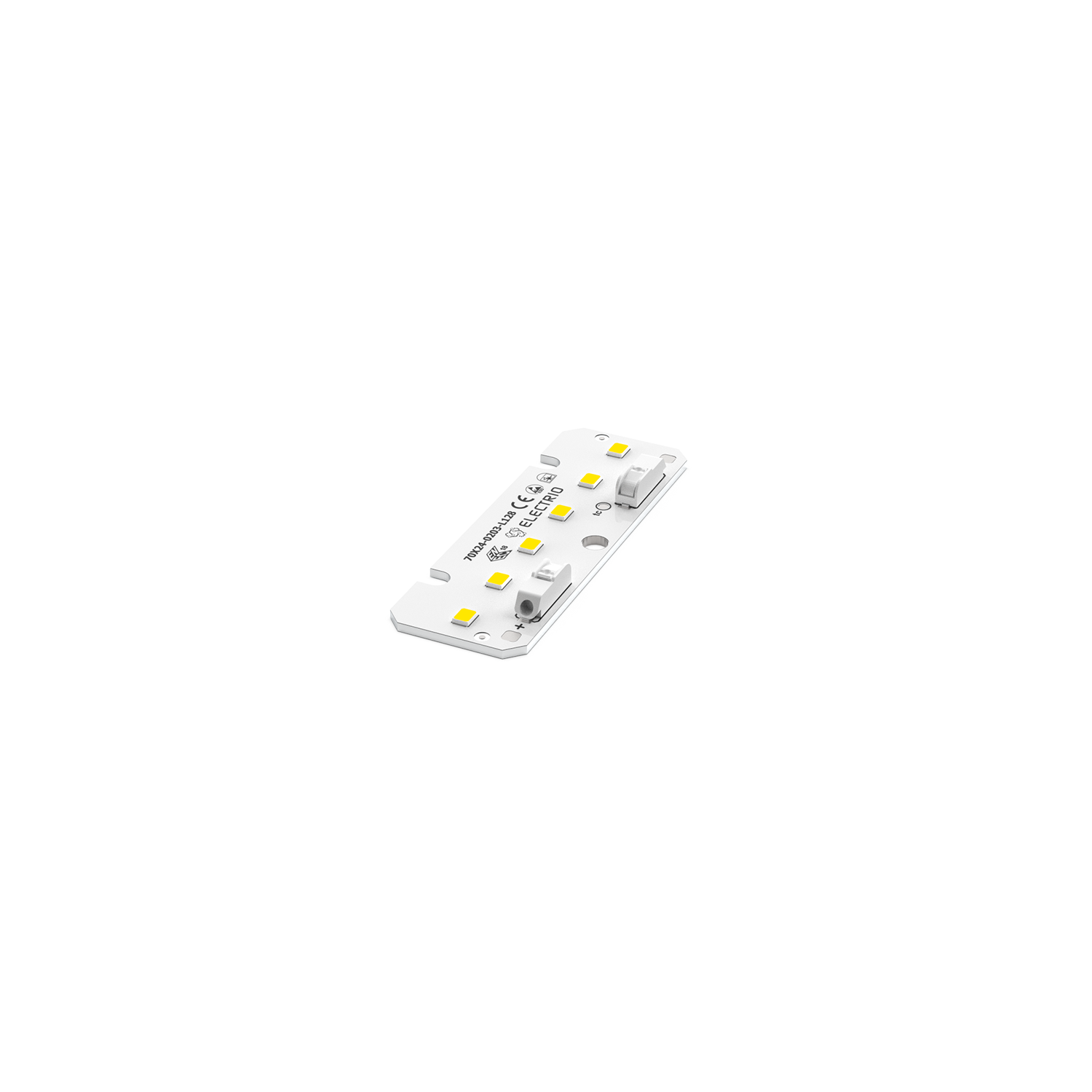

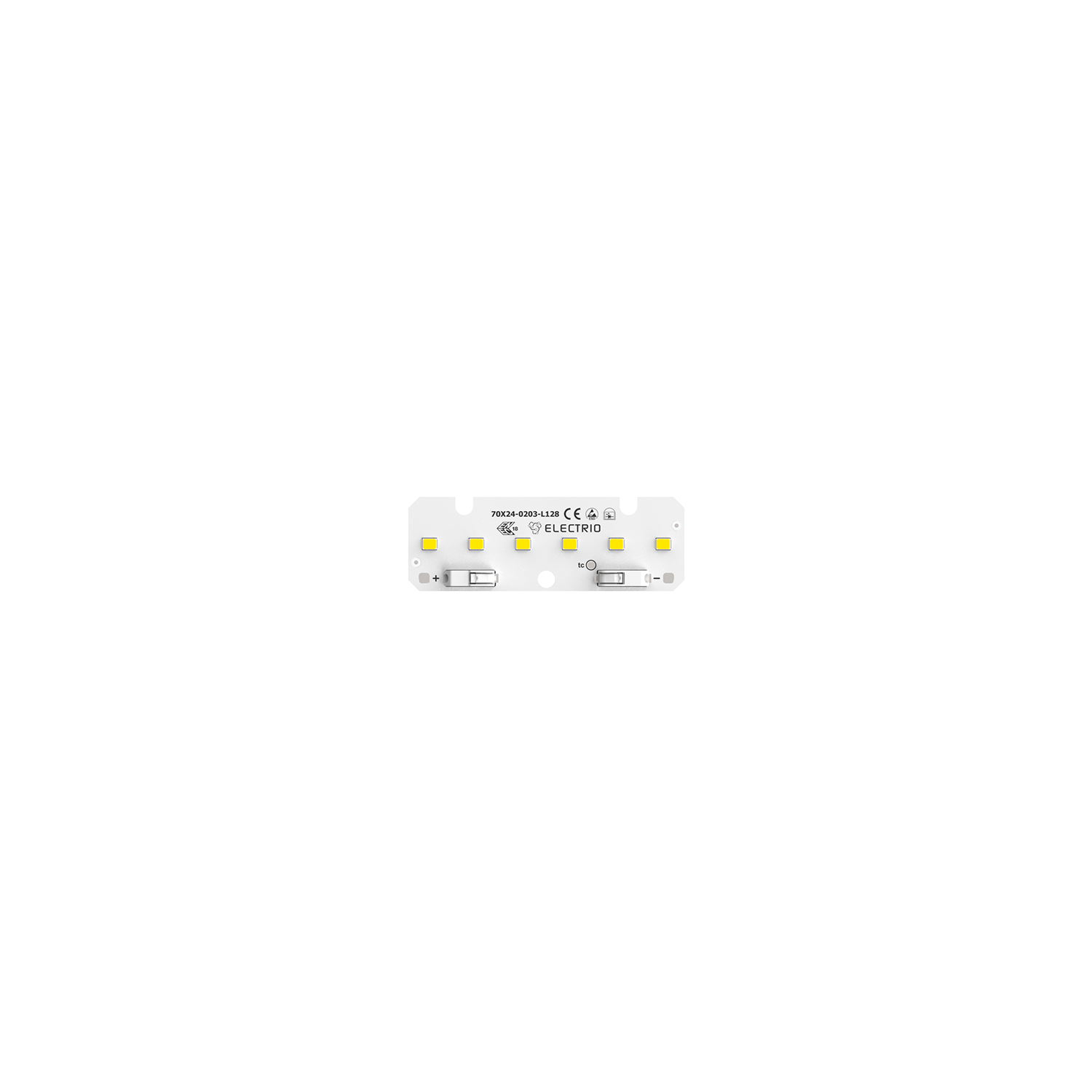

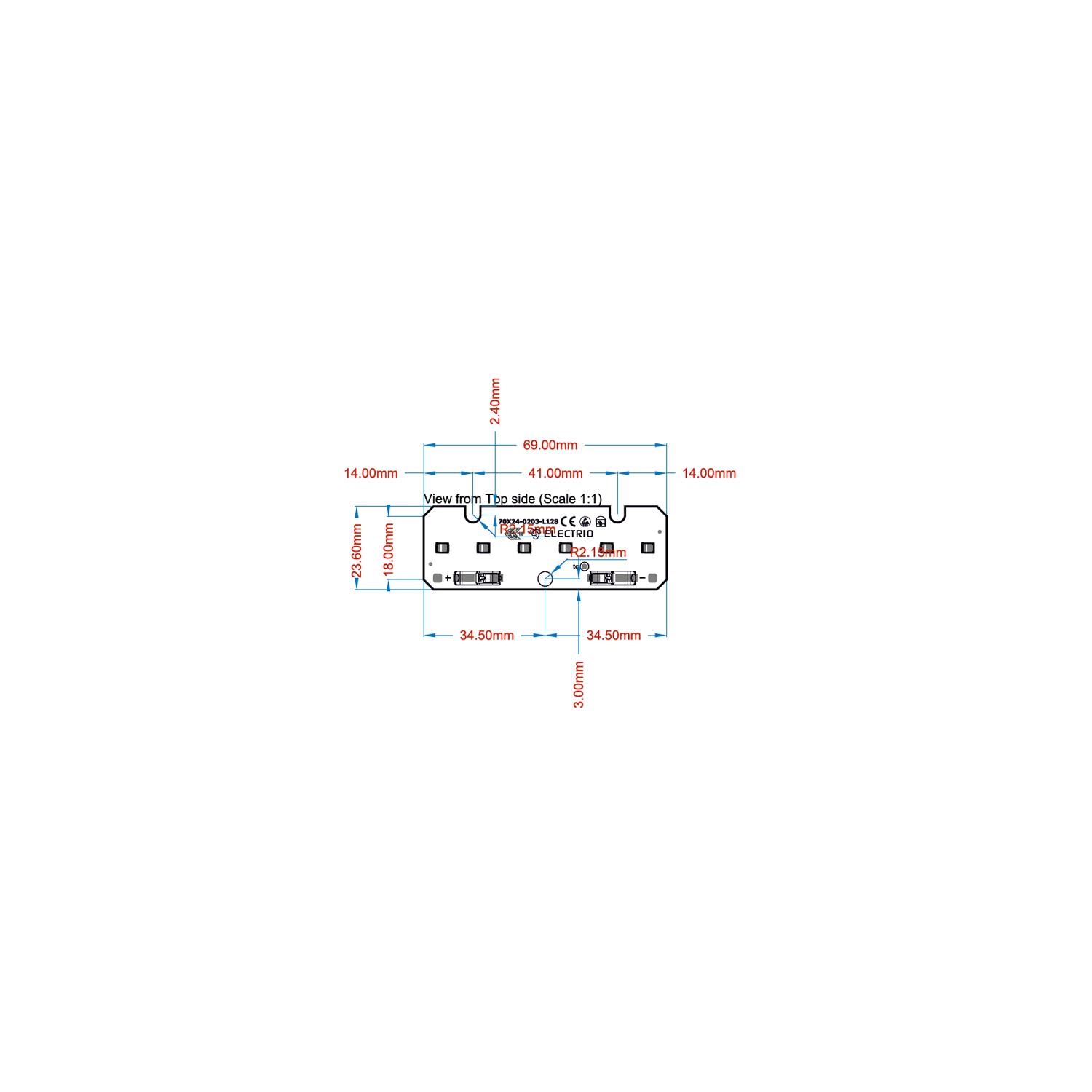

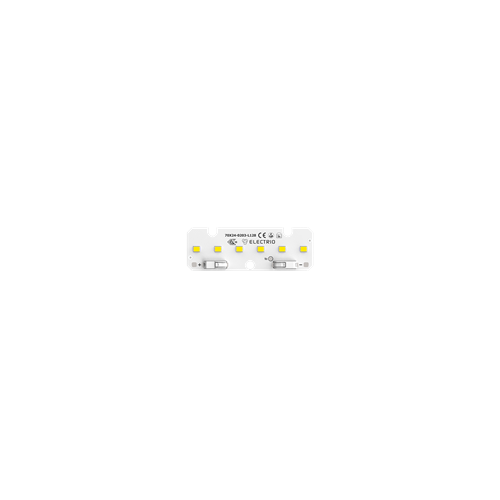

70X24-0203-ENEC
Lumileds Luxeon 2835 SA-A1 3V
Constant Color,MacAdams Step 3
Substrate: FR4
PCB Thickness: 1.6 mm
Copper Weight: 35μm
Surface Treatment: HASL
Thermal Conductivity <1W/mk
Breakdown Voltage: 2000V
Wago 2060-451/998-404 1 pole connector
CTI 600V
Max. temperature is 85°C @ Tc point
Max. operating current Imax=900mA
Max. working voltage is 400V for insulation
85°C,180mA,TM-21 L70(12K)>72.000hrs
85°C,360mA,TM-21 L70(12K)>72.000hrs
85°C,540mA,TM-21 L70(10K)=49,615hrs
Get Offer
Documents
DATASHEET
ENEC CERTIFICATION
