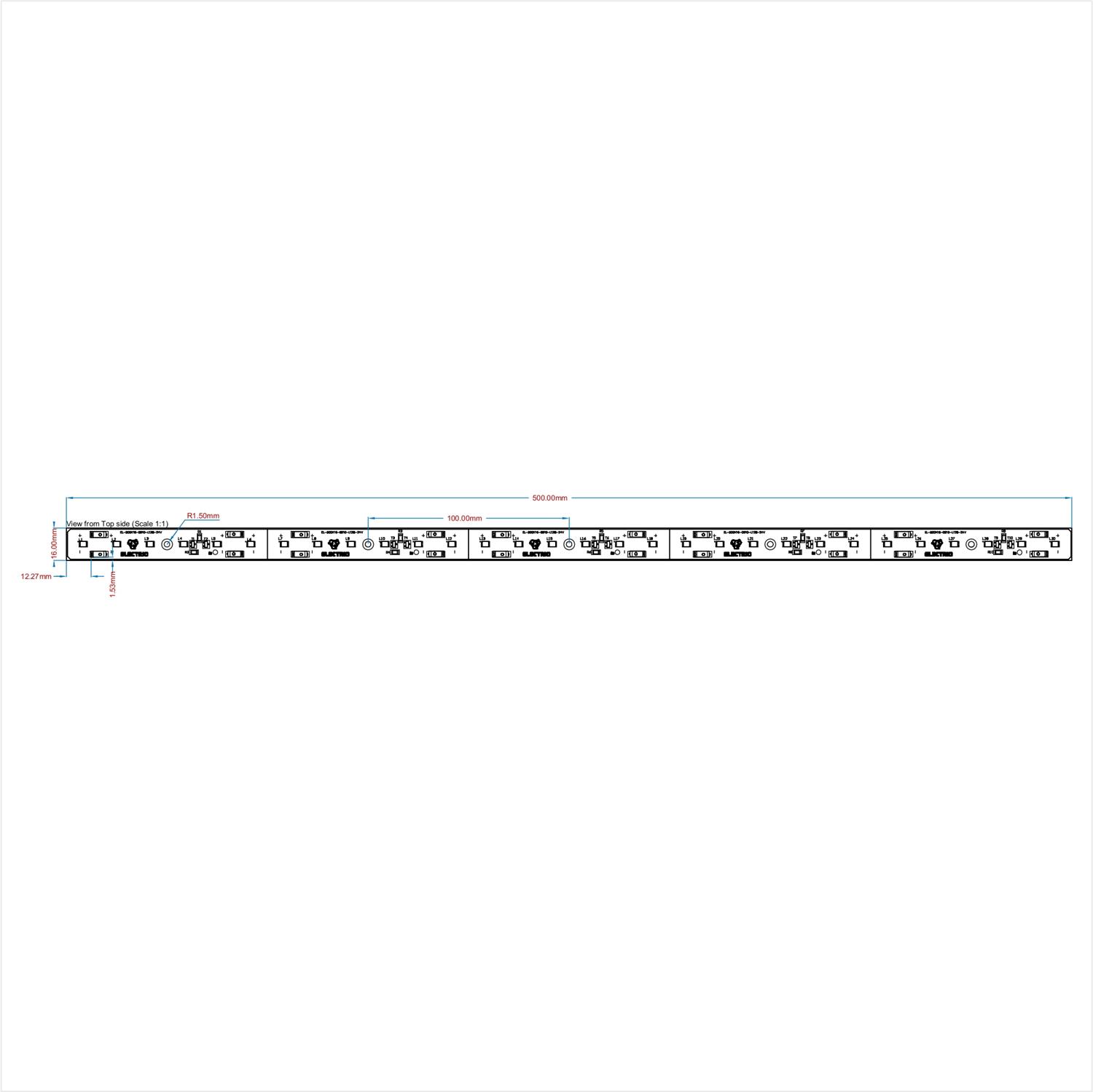

EL-500X16-0610-L128-24V
Stock Code: A001056
Constant Color , MacAdams Step 3 Homogeneous illumination
PCB Materiel Aluminum 1.6 mm, Optional Selection
Substrate : ALU/FR4/CEM1/CEM3
PCB Thickness : 1.0/1.6 mm
Copper Weight : 35Um/70Um
Surface Treatment : HASL/OSP
Thermal Conductivity : 1W/1.2W/1.5W/2W
Breakdown voltage : 2000V
  • UL
  • RoHS
  • ESD
  • ENERGY
Module Code EL-500X16-0610-L128-24V
PCB Material ALU/FR4/CEM1/CEM3
Serial 6 Operating Temperature(°C) -40 ~ +85
Parallel 10 Storage Temperature(°C) -40 ~ +85
LED Quantity 60 Thermal Conductivity(W/m-k) 1W/mk

LED L128-4080SA35A00A1
Correlated Color Temperature (CCT) 4000K
Color Rendering Index (CRI) 80
Module Operating Current (mA) 350 500 700
Module Operating Voltage (V) 24,00 24,00 24,00
Module Light Output (lm) 1154 1629 2238
Module Power (W) 8,40 12,00 16,80
Module Efficiency (lm/W) 137,4 135,8 133,2
