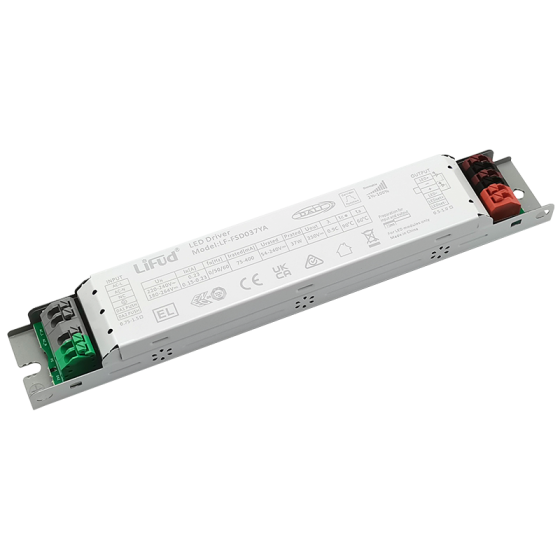

LF-FSDXXXYA
Non-isolated DALI DT6 Dimmable LED Driver
Operating voltage: 220-240Vac; 180-264Vdc
Output power: 18-150W
Operating Voltage Limit: 198-264Vac
DALI or PUSH dimmable
Supports corridor function and emergency lighting
High efficiency up to 95%
Output current adjustable via programmer or exterior resistor or NFC(150W)
Supports CLO (constant lumen output)
Dim to off without afterglow
Supports 2 sets of light fixtures connected in series
Flicker-free
Warranty: 5 years
Certifications: DALI-2, ENEC, CE, CB, RCM, UKCA, EL, CCC
Applications: Indoor office lighting, hospitality lighting, residential lighting, corridor lighting, decorative lighting, commercial lighting
  • ENEC
  • DALI 2
  • UKCA
Model Output Power Input Voltage Output Voltage Output Current Eff. (full load) PF (full load) Dimension (L*W*H)
LF-FSD037YA 37 W 220-240 Vac 54-240 Vdc 75-400 mA 92% (230Vac) 0.95 (230Vac) 195*30*21 mm
LF-FSD060YA 60 W 220-240 Vac 54-240 Vdc 120-550 mA 94% (230Vac) 0.95 (230Vac) 245*30*21 mm
LF-FSD075YA 75 W 220-240 Vac 54-240 Vdc 125-900 mA 94% (230Vac) 0.95 (230Vac) 245*30*21 mm
LF-FSD090YA 90 W 220-240 Vac 54-240 Vdc 250-1050 mA 95% (230Vac) 0.95 (230Vac) 245*30*21 mm
LF-FSD150YA 150 W 220-240 Vac 64-300 Vdc 250-1000 mA 96% (230Vac) 0.98 (230Vac) 355*30*22 mm
LF-FSD037YA(A) 37 W 220-240 Vac 54-240 Vdc 200-350 mA 92% (230Vac) 0.95 (230Vac) 195*30*21 mm
LF-FSD060YA(A) 60 W 220-240 Vac 54-240 Vdc 200-350 mA 94% (230Vac) 0.95 (230Vac) 245*30*21 mm
LF-FSD075YA(A) 75 W 220-240 Vac 54-240 Vdc 200-350 mA 94% (230Vac) 0.95 (230Vac) 245*30*21 mm
LF-FSD090YA(A) 90 W 220-240 Vac 54-240 Vdc 200-350 mA 95% (230Vac) 0.95 (230Vac) 245*30*21 mm
LF-FSD150YA(A) 150 W 220-240 Vac 64-300 Vdc 250-1000 mA 96% (230Vac) 0.98 (230Vac) 355*30*22 mm
LF-FSD150YA(B) 150 W 220-240 Vac 64-300 Vdc 400-750 mA 96% (230Vac) 0.98 (230Vac) 355*30*22 mm
