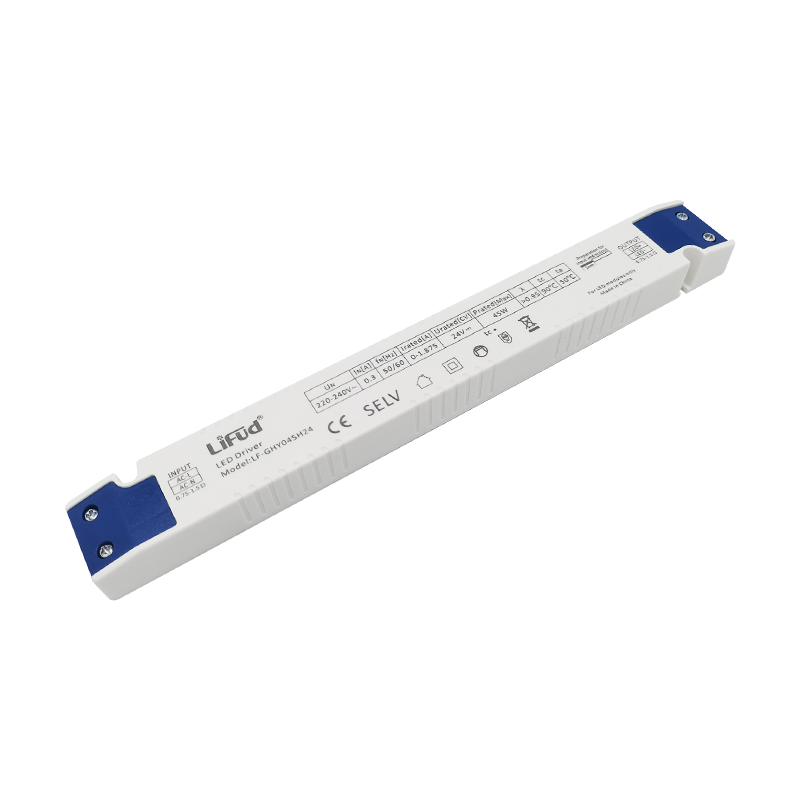

LF-GHYxxxH24 CV
Non-dimmable LED Driver
Parameters
Operating voltage: 220-240Vac; 180-264Vdc
Output power: 45&75&100&150&180&240W
Operating voltage limit: 198-264Vac
Features
1. High PF
2. Low THD
3. High efficiency up to 94%
4. Flicker free
5. Suitable for Class II light fixtures
Warranty
5 years
Certifications
ENEC, CE, CB, UKCA, RCM, MM, CCC
Applications
Indoor decorative lighting, residential lighting
  • ENEC
  • UKCA
Model Output Power Input Voltage Output Voltage Output Current Eff. (full load) PF (full load) Dimension (L*W*H)
LF-GHY045H24 45 W 220-240 Vac 24 Vdc 0-1.875 A 88% (230Vac) 0.97 (230Vac) 251*30.7*19 mm
LF-GHY075H24 75 W 220-240 Vac 24 Vdc 0-3.125 A 91% (230Vac) 0.96 (230Vac) 316*30.7*22.8 mm
LF-GHY100H24 100 W 220-240 Vac 24 Vdc 0-4.2 A 94% (230Vac) 0.98 (230Vac) 316*30.7*22.8 mm
LF-GHY150H24 150 W 220-240 Vac 24 Vdc 0-6.25 A 94% (230Vac) 0.99 (230Vac) 336*30.7*22.8 mm
LF-GHY180H24 180 W 220-240 Vac 24 Vdc 0-7.5A 94% (230Vac) 0.99 (230Vac) 361*33.1*22.8mm
