LF-GIFXXXYS - PF:0.95 FLICKER FREE COMPACT SERIES

Previous Next

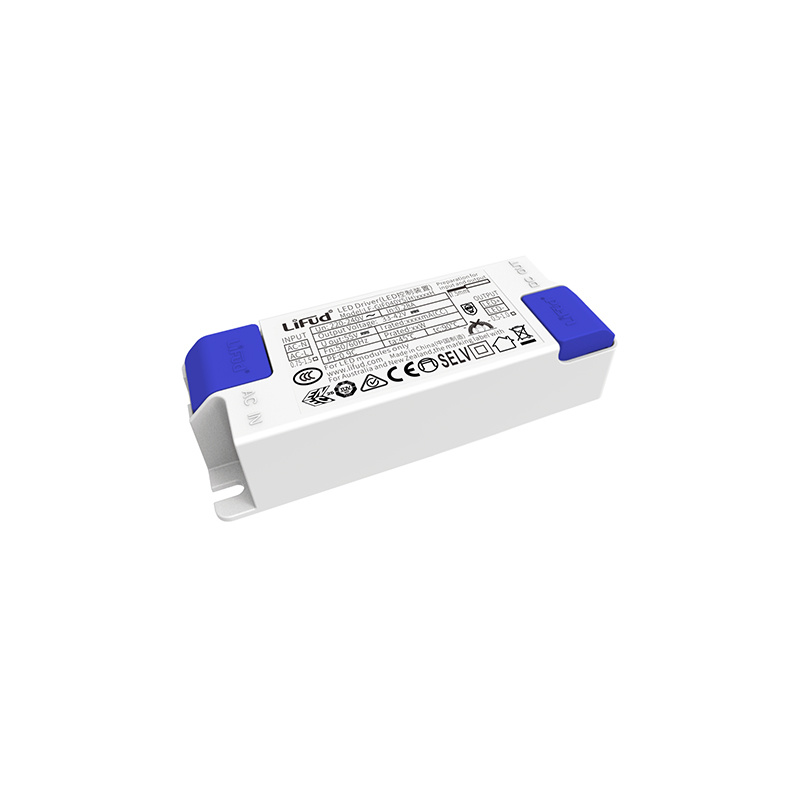

LF-GIFXXXYS

EU-Standard Flicker Free Panel Light LED Driver

Operating voltage: 220-240Vac
Output power: 50-60W max.
Output voltage: 30-40V
Output current adjustable via DIP switch (every 50mA as a step) (9W/13W/20W/60W)
High PF; flicker-free
IP40; L-N: 2kV(optional)
High efficiency, high reliability, and long lifespan
Ta: -30℃~50℃
Warranty: 5 years
Certifications: ENEC, CE, CB, RCM, CCC
Applications: Panel light, down light, spot light, ceiling light, etc.

Get Offer

Model	Output Power	Input Voltage	Output Voltage	Output Current	Eff. (full load)	PF (full load)	*Dimension (LWH)*
LF-GIF009YS	9 W	220-240 Vac	25-42 Vdc	135-250 mA	84% (230Vac)	0.95 (230Vac)	963624 mm
LF-GIF013YS	13 W	220-240 Vac	25-42 Vdc	250-350 mA	86% (230Vac)	0.95 (230Vac)	963624 mm
LF-GIF018YS	18 W	220-240 Vac	25-42 Vdc	350-500 mA	86% (230Vac)	0.95 (230Vac)	1133727 mm
LF-GIF020YS0550H(S)	20 W	220-240 Vac	25-42 Vdc	400-550 mA	87% (230Vac)	0.95 (230Vac)	963624 mm
LF-GIF024YS	24 W	220-240 Vac	25-42 Vdc	450-600 mA	87% (230Vac)	0.95 (230Vac)	1133727 mm
LF-GIF030YSxxxxH	30 W	220-240 Vac	33-40 Vdc	550-750 mA	87% (230Vac)	0.95 (230Vac)	1154128 mm
LF-GIF030YS(D)xxxxH	30 W	220-240 Vac	25-42 Vdc	550-750 mA	87% (230Vac)	0.95 (230Vac)	1154128 mm
LF-GIF040YSxxxxH	40 W	220-240 Vac	33-40 Vdc	800-1050mA	88% (230Vac)	0.95 (230Vac)	1154128 mm
LF-GIF040YS(D)xxxxH	40 W	220-240 Vac	25-42 Vdc	800-1050mA	88% (230Vac)	0.95 (230Vac)	1154128 mm
LF-GIF040YS(H)xxxxH	40 W	220-240 Vac	33-42 Vdc	800-1000mA	88% (230Vac)	0.95 (230Vac)	1154128 mm
LF-GIF050YSxxxxH	50 W	220-240 Vac	30-40 Vdc	1100-1300mA	89% (230Vac)	0.95 (230Vac)	139.54329 mm
LF-GIF060YSxxxxH	60 W	220-240 Vac	30-40 Vdc	1350-1550mA	89% (230Vac)	0.95 (230Vac)	139.54329 mm
LF-GIF050YS	50 W	220-240 Vac	30-40 Vdc	1100-1300 mA	93% (230Vac)	0.95 (230Vac)	1374128 mm
LF-GIF060YS	60 W	220-240 Vac	30-40 Vdc	1350-1550 mA	93% (230Vac)	0.95 (230Vac)	1374128 mm
LF-GIF060YS1500(H)	60 W	220-240 Vac	30-40 Vdc	1200-1500 mA	93% (230Vac)	0.95 (230Vac)	1374128 mm
