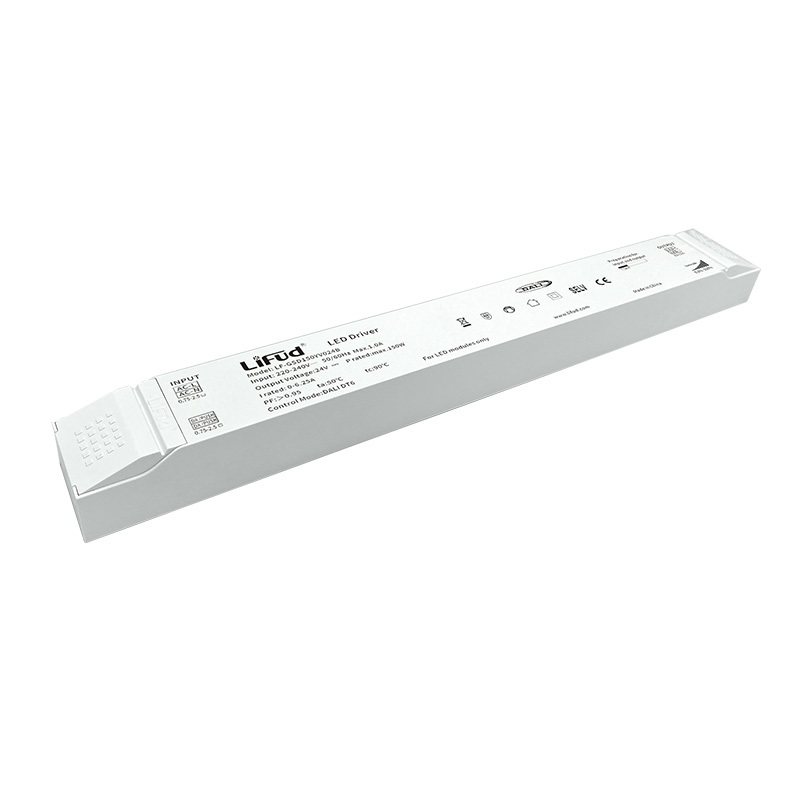

LF-GSDxxxYV012/024B
CV DALI-2 DT6 LED Driver
Operating voltage: 220-240Vac; 282-340Vdc
Output power: 75&120&150W
Operating voltage limit: 198-264Vac
DALI or PUSH dimmable
0%-100%dimming range; 0.1% dimming depth
High efficiency up to 93%
Flicker free
Suitable for Class II light fixtures
Warranty: 5 years
Certifications: DALI-2, ENEC, CE, CB, RCM, CCC
Applications: LED strip light, luminous character, light box
Detailed Information
Get Offer
Information
Documents
Model
Output Power
Input Voltage
Output Voltage
Output Current
Eff. (full load)
PF (full load)
Dimension (L*W*H)
LF-GSD075YV024B
75 W
220-240 Vac
24 Vdc
0-3.125 A
91% (230Vac)
0.95 (230Vac)
300*42*30.3 mm
LF-GSD120YV012B
120 W
220-240 Vac
12 Vdc
0-10 A
92% (230Vac)
0.95 (230Vac)
361*42*30.3 mm
LF-GSD150YV024B
150 W
220-240 Vac
24 Vdc
0-6.25 A
93% (230Vac)
0.95 (230Vac)
361*42*30.3 mm
LF-GSD075YV024B Data Sheet V1.2
LF-GSD150YV024B Data Sheet V1.1
LF-GSD150YV024BII Specification V1.0
