LF-AADxxx

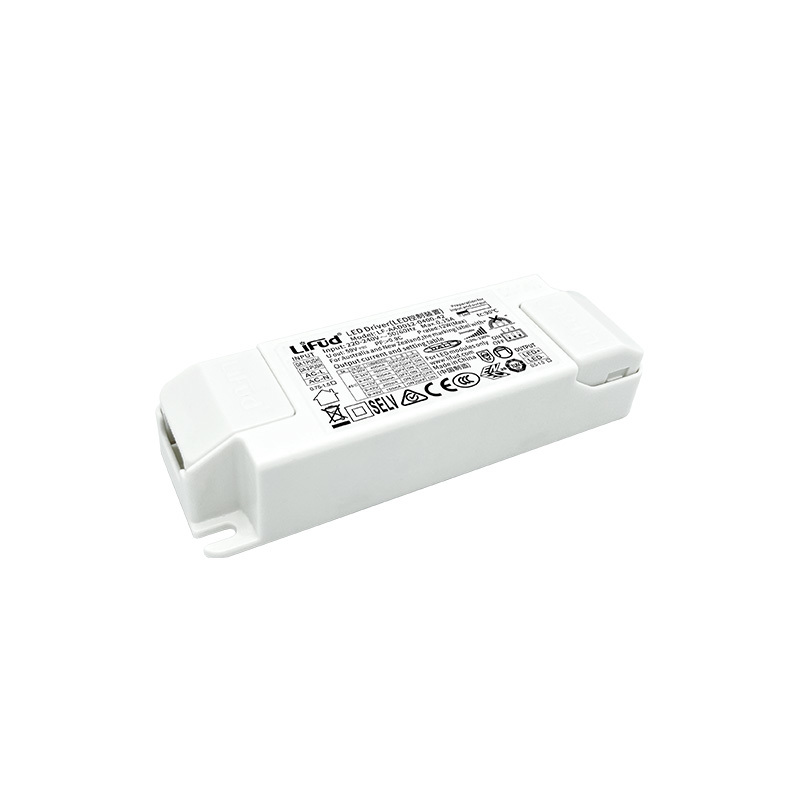

DALI-2 DT6 Dimmable LED Driver
Operating voltage: 220-240Vac; 180-280Vdc
Output power: 4-40W
Operating voltage limit: 198-264Vac
DALI or PUSH dimmable
Constant current output and output current adjustable via DIP switch
0%-100%dimming range; 0.1% dimming depth
Flicker free
Suitable for Class II light fixtures
Warranty: 5 years
Certifications: DALI-2, ENEC, CE, CB, RCM, CCC
Applications: Indoor office lighting, decorative lighting, commercial lighting, residential lighting, horticultural lighting
  • ENEC
  • DALI 2
Model Output Power Input Voltage Output Voltage Output Current Eff. (full load) PF (full load) Dimension (L*W*H)
LF-AAD008-0350-42 8 W 220-240 Vac 9-42 Vdc 100-300 mA 76% (230Vac) 0.94 (230Vac) 142.1*29.8*20.5 mm
LF-AAD008-0700-12 8 W 220-240 Vac 2-12 Vdc 350-700 mA 77% (230Vac) 0.92 (230Vac) 142.1*29.8*20.5 mm
LF-AAD012-0400-42 12 W 220-240 Vac 9-42 Vdc 150-400 mA 80% (230Vac) 0.92 (230Vac) 121.9*39.9*25 mm
LF-AAD020-0500-42 20 W 220-240 Vac 9-42 Vdc 250-500 mA 85% (230Vac) 0.96 (230Vac) 121.9*39.9*25 mm
LF-AAD030-0750-42 30 W 220-240 Vac 9-42 Vdc 400-750 mA 86% (230Vac) 0.97 (230Vac) 141.5*46*27.5 mm
LF-AAD040-1050-42 40 W 220-240 Vac 9-42 Vdc 550-1050 mA 88% (230Vac) 0.94 (230Vac) 141.5*46*27.5 mm
