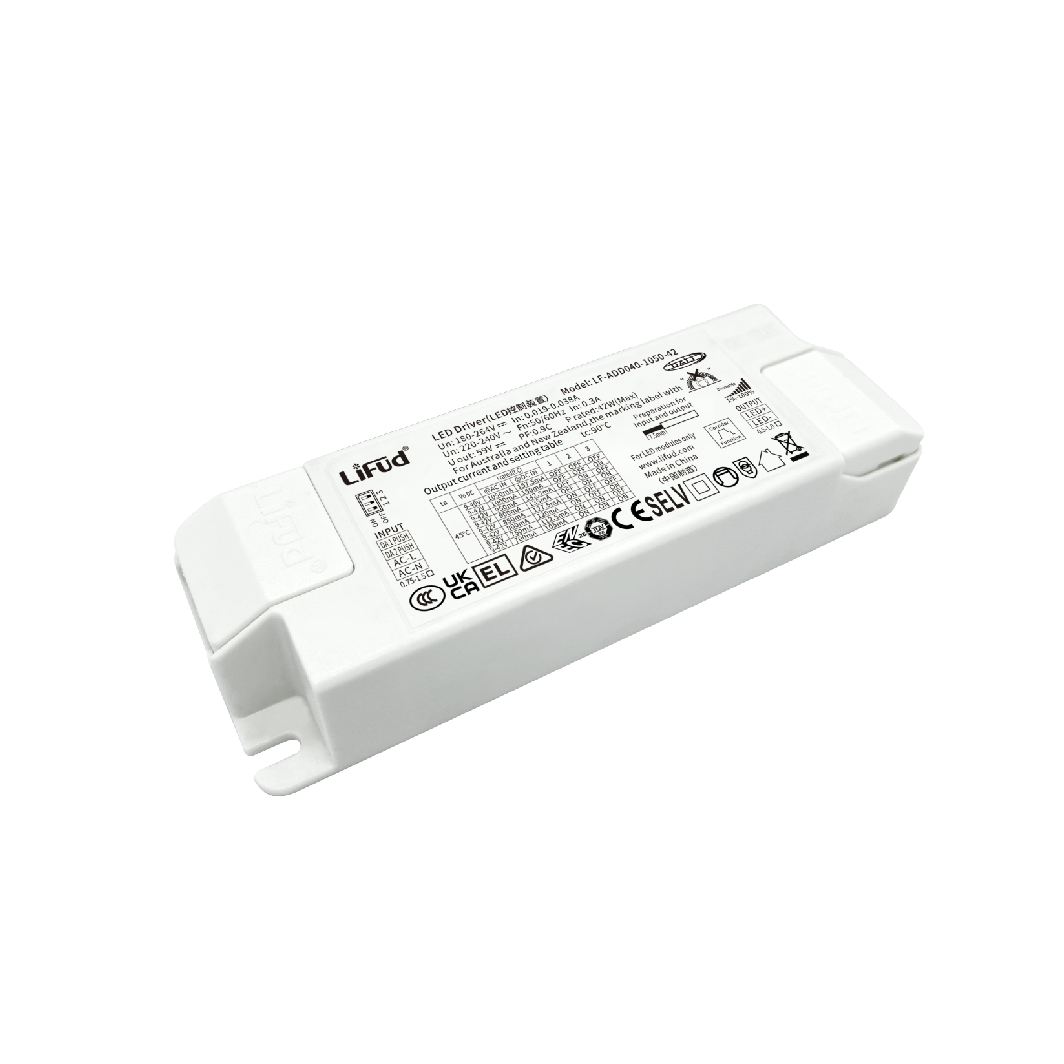

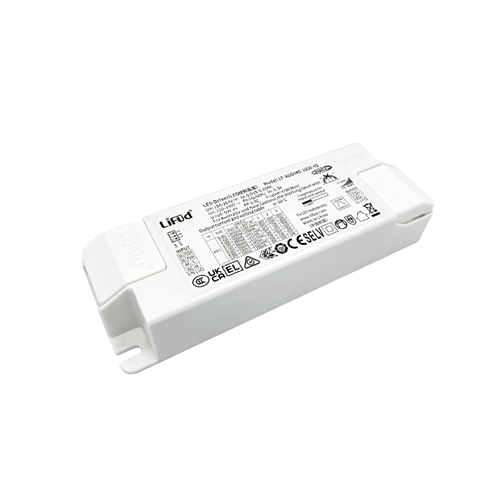

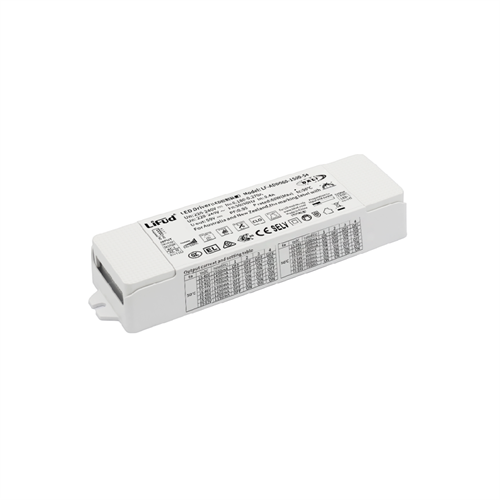

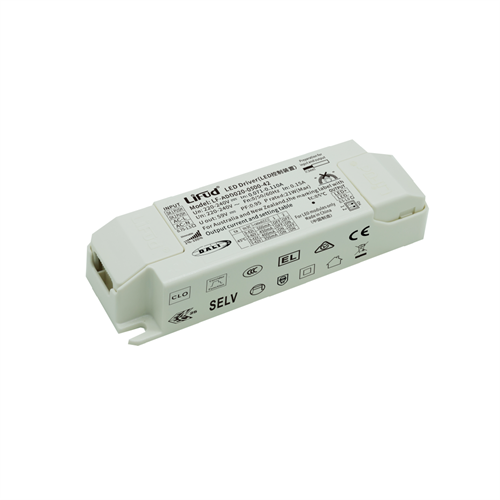

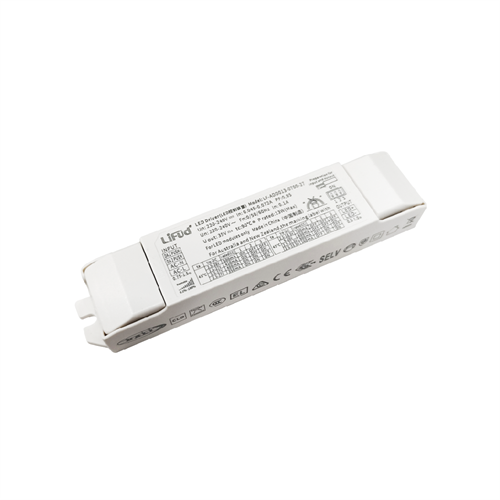

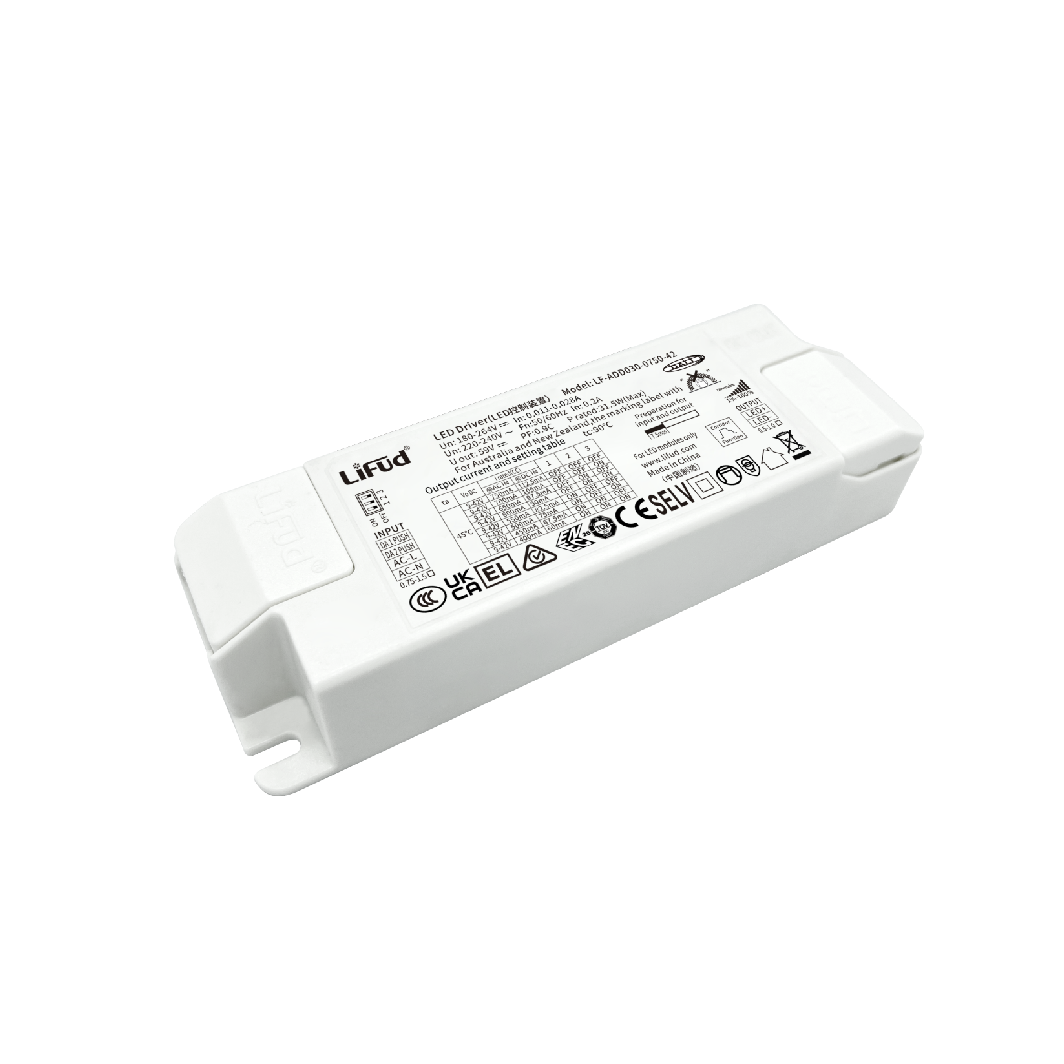

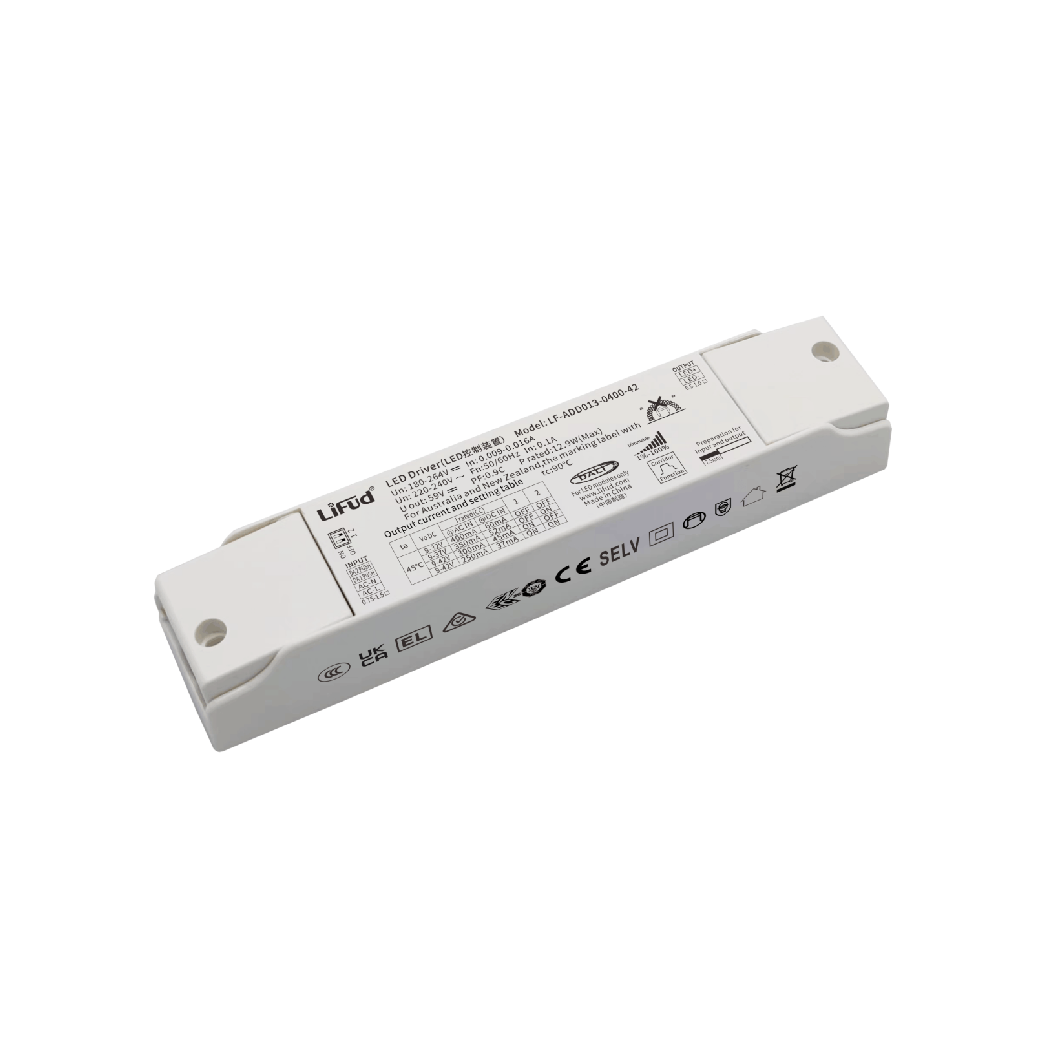

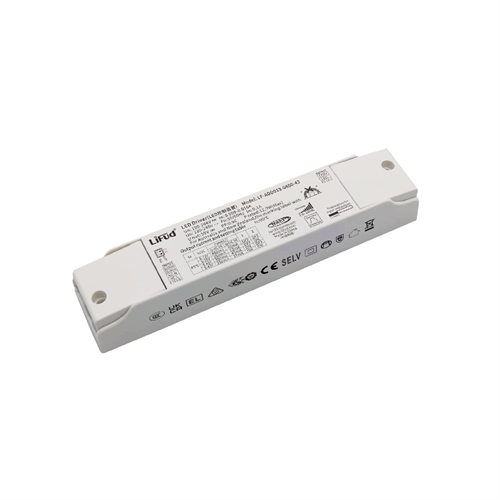

LF-ADDxxx
DALI-2 DT6 Dimmable LED Driver
Operating voltage: 220-240Vac
Output power: 4-60W
Output voltage: 15-54V
DALI & PUSH dimmable; dimming curve selectable
High efficiency up 90%
Advanced functions: CLO, corridorDIM, EL (brightness adjustable;parameters set via Lifud programmer
Support DALI Part 251, 252, 253
Output current adjustable via DIP switch with every 50mA as a step
PUSH: 1kV; L-N: 2kV
Warranty: 5 years
Certifications: TUV-ENEC, CE, CB, EL, RCM, CCC
Applications: Indoor office lighting, commercial lighting, residential lighting
  • ENEC
Model Output Power Input Voltage Output Voltage Output Current Eff. (full load) PF (full load) Dimension (L*W*H)

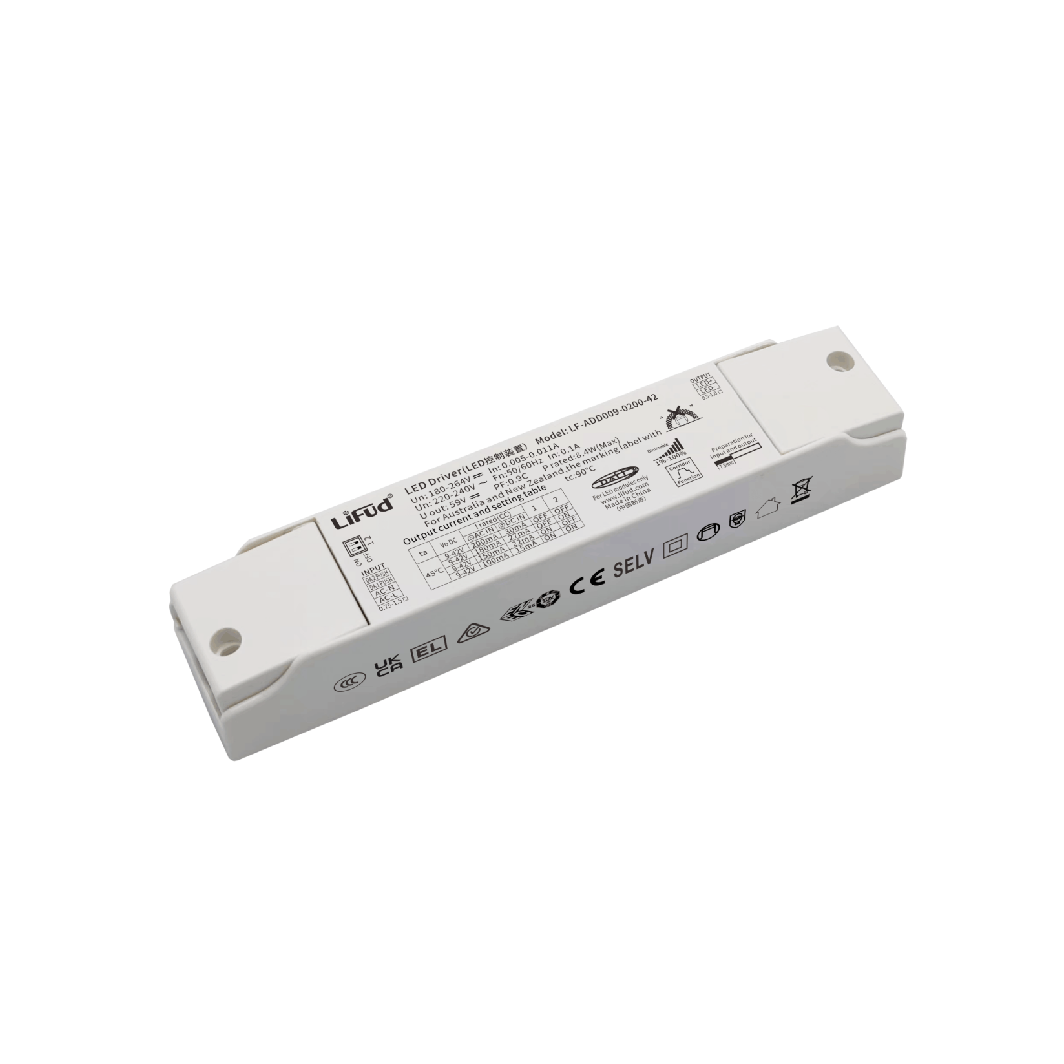

LF-ADD009-0200-42 9W 220-240 Vac 9-42 Vdc 100-200 mA 0,8 0.90 142*30*22 mm
LF-ADD013-0400-42 13W 220-240 Vac 9-42 Vdc 250-400 mA 0,82 0.95 142*30*22 mm

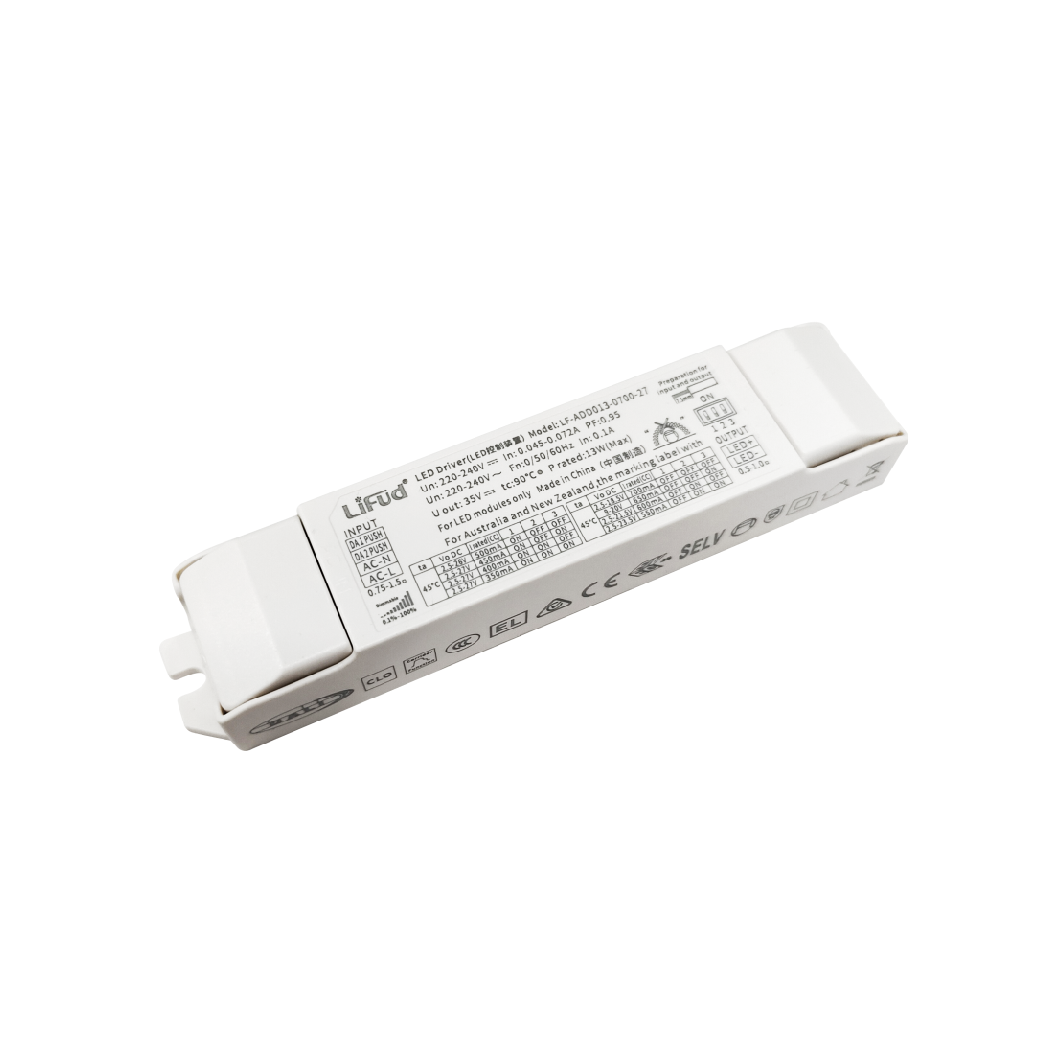

LF-ADD013-0700-27 13W 220-240 Vac 2.5-27 Vdc 350-700 mA 0,83 0.95 142*30*21 mm

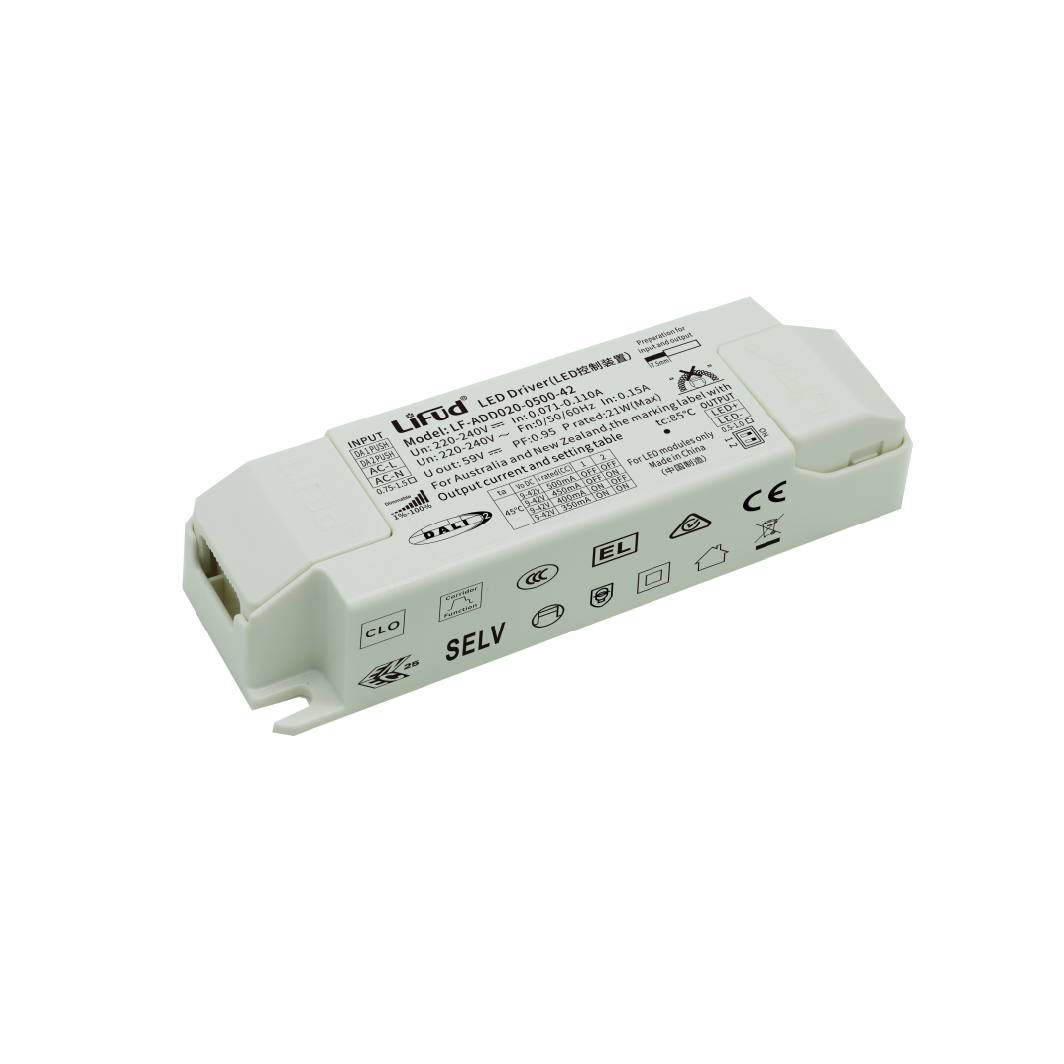

LF-ADD020-0500-42 21 W 220-240 Vac 9-42 Vdc 350-500 mA 0,86 0.95 122*40*25 mm
LF-ADD030-0750-42 30 W 220-240 Vac 9-42 Vdc 400-750 mA 87%  0.97 145*46*27.5 mm
LF-ADD040-1050-42 40 W 220-240 Vac 9-42 Vdc 700-1050 mA 87%  0.97 145*46*27.5 mm

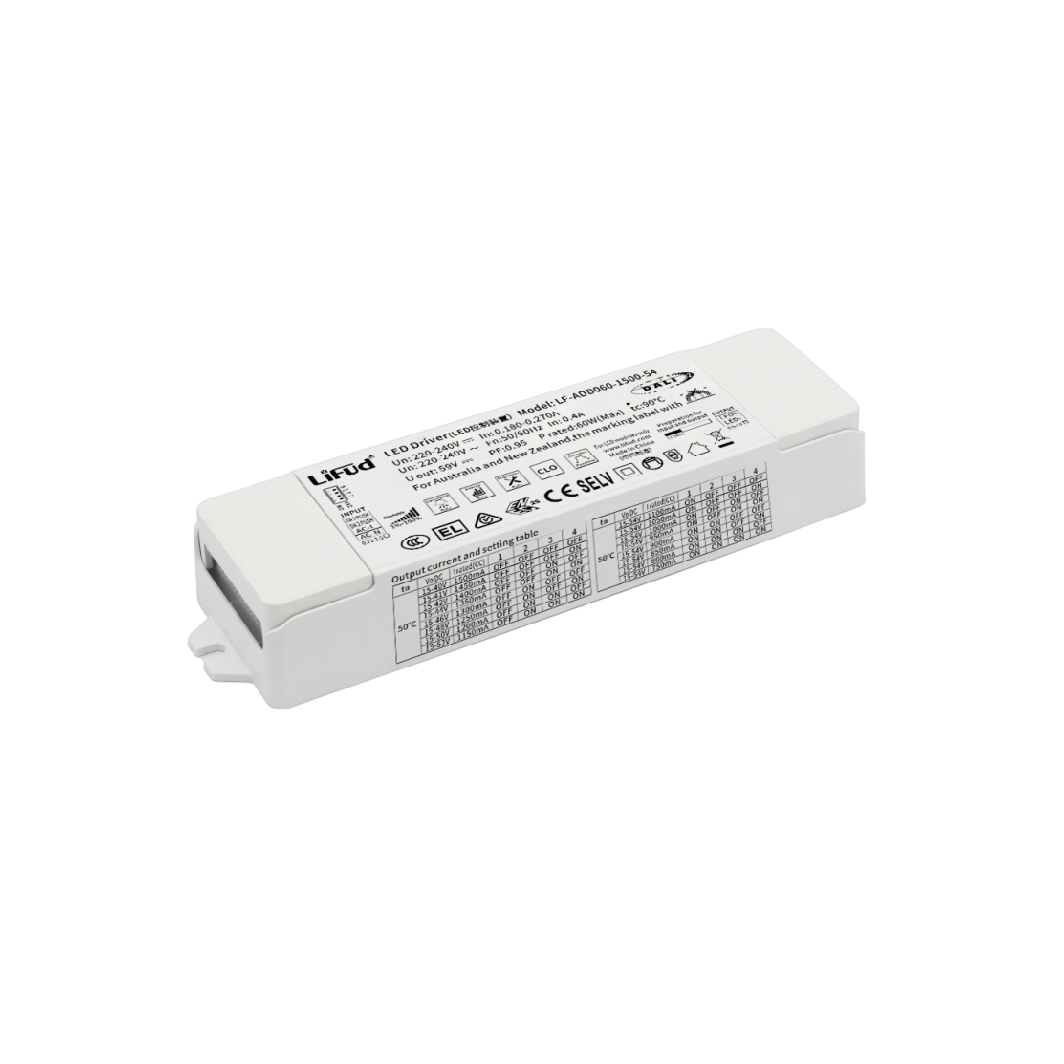

LF-ADD060-1500-42 60 W 220-240 Vac 15-54 Vdc 750-1500 mA 0,9 0.95 174.2*48.75*27.7 mm
