LF-FMRXXXYS

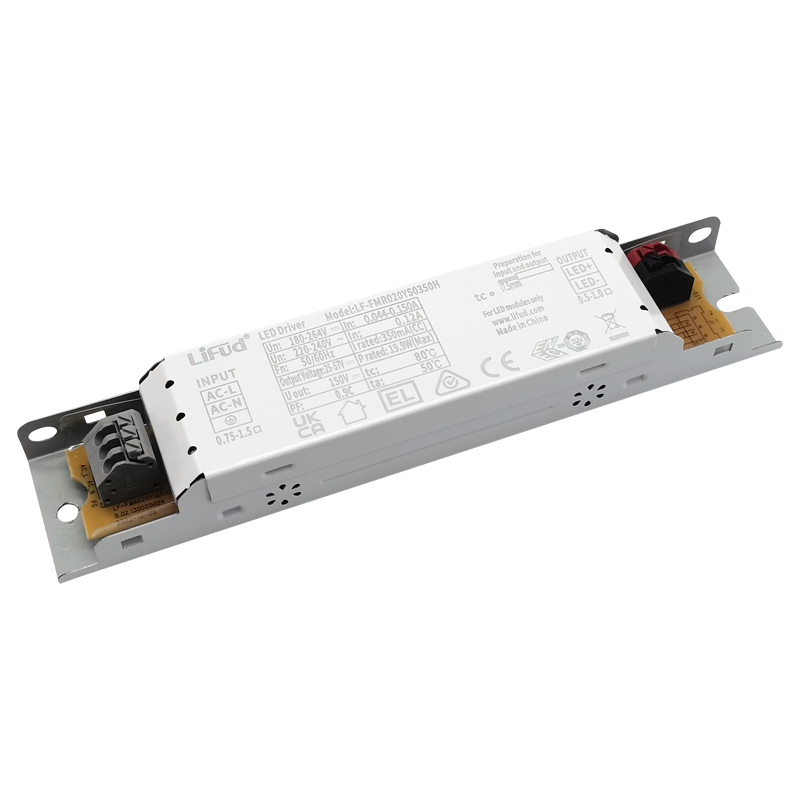

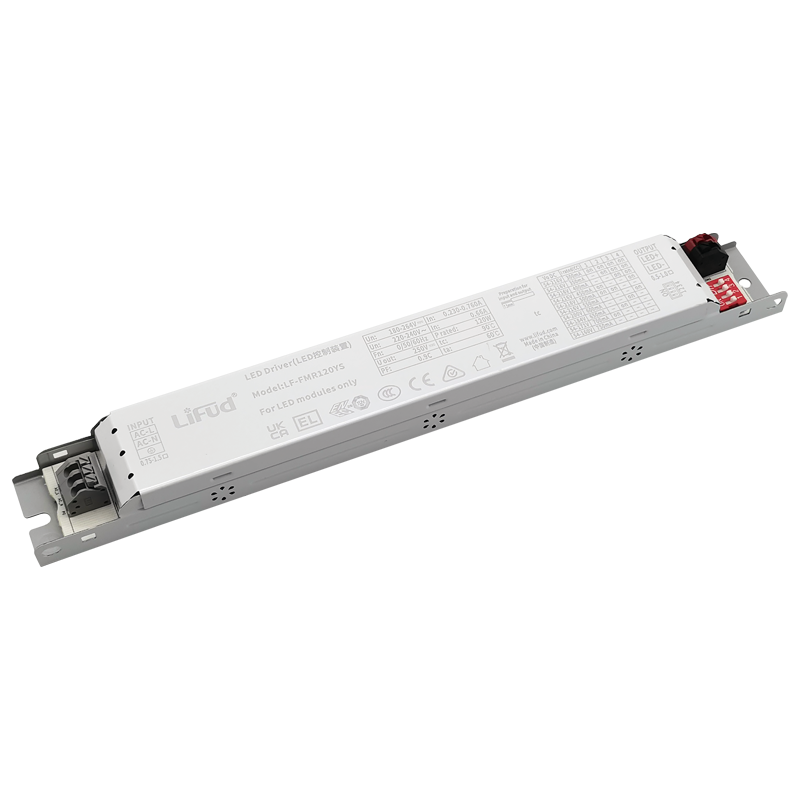

Non-isolated Flicker-free LED Driver
Operating voltage: 220-240Vac; 180-264Vac
Output power: 11-150W
Operating voltage limit: 198-264Vac
High efficiency up to 93%
Constant current output and output current adjustable via DIP switch (optional)
Flicker free
Suitable for Class I light fixtures (especially designed for EL certified emergency light)
Warranty: 5 years
Certifications: ENEC, CE, CB, RCM, EL, UKCA, CCC
Applications: Linear light, tri-proof light
  • ENEC
  • UKCA
Model Output Power Input Voltage Output Voltage Output Current Eff. (full load) PF (full load) Dimension (L*W*H)
LF-FMR020YS(G3)  20 W 220-240 Vac 25-57 Vdc 200-350 mA 88% (230Vac) 0.95 (230Vac) 156*30*21 mm
LF-FMR040YS(G3)  40 W 220-240 Vac 58-114 Vdc 200-350 mA 92% (230Vac) 0.95 (230Vac) 195*30*21 mm
LF-FMR060YS(G3)   60 W 220-240 Vac 115-172 Vdc 200-350 mA 91% (230Vac) 0.90 (230Vac) 195*30*21 mm
LF-FMR150YS 150W 220-240 Vac 128-350 Vdc 350-700 mA 95% (230Vac) 0.95 (230Vac) 280*30*21 mm
