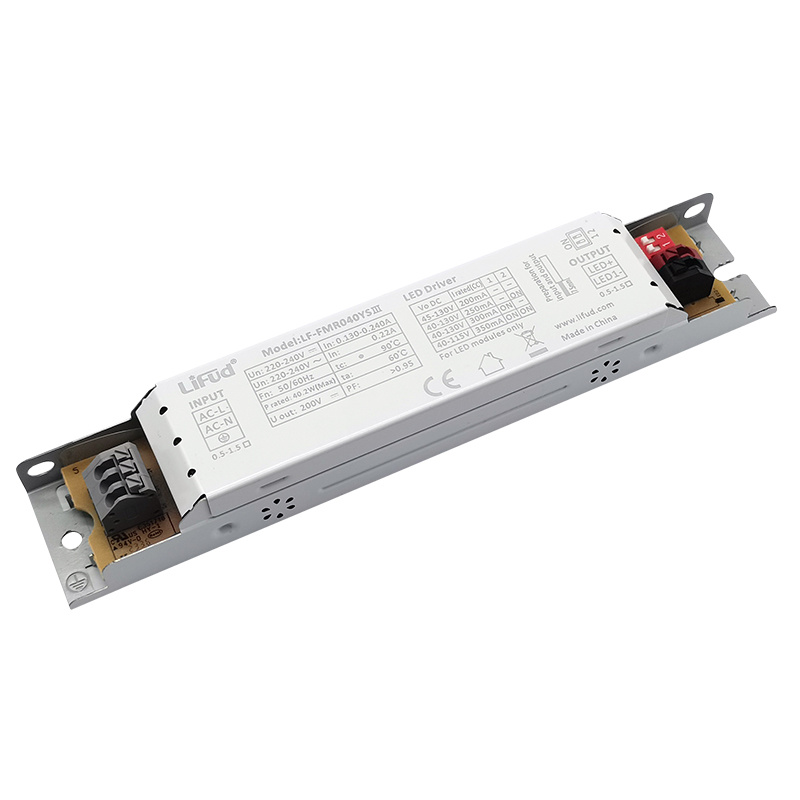

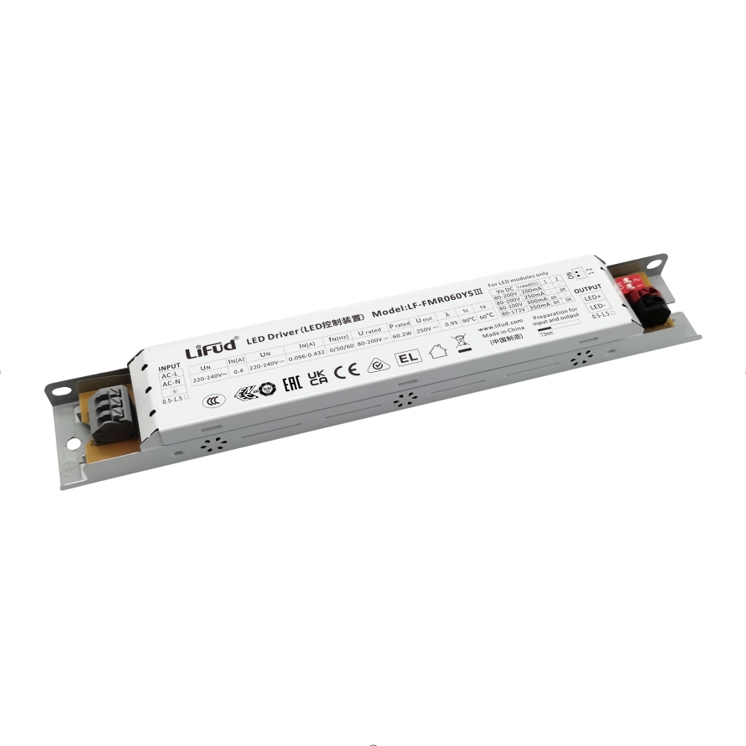

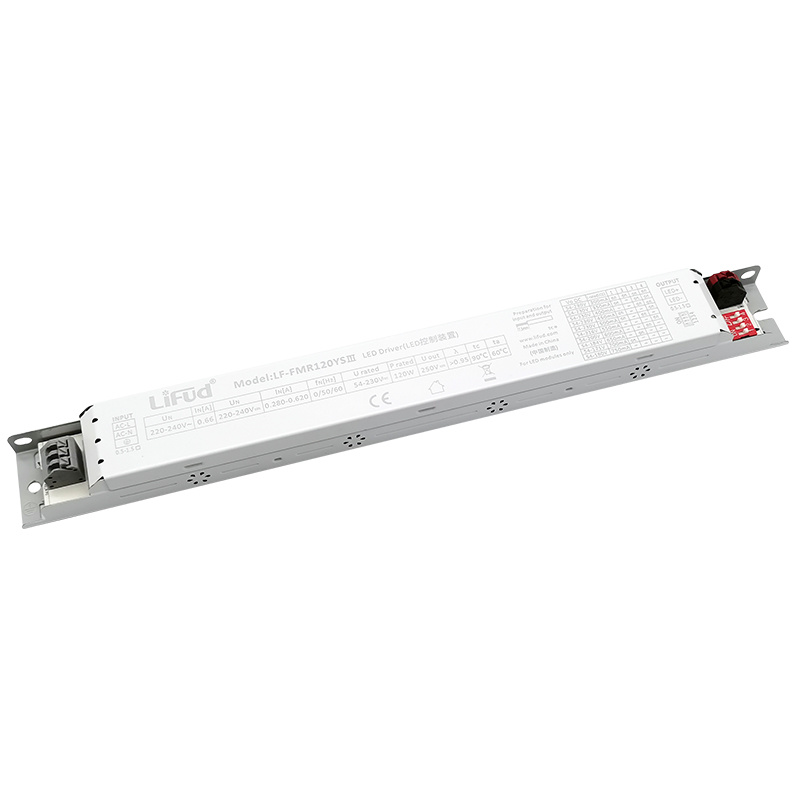

LF-FMRXXXYSIII
Non-isolated LED Driver
Operating voltage: 220-240Vac; 180-264Vdc
Output power: 11-120W
Operating voltage limit: 198-264Vac
Flicker free
Constant current output and output current adjustable via DIP switch (optional)
High efficiency up to 94%
Suitable for Class I light fixtures (especially designed for EL certified emergency light)
Warranty: 5 years
Certifications: ENEC, CE, CB, RCM, EL, UKCA, CCC, EAC
Applications: Linear light, tri-proof light
  • ENEC
  • UKCA
Model Output Power Input Voltage Output Voltage Output Current Eff. (full load) PF (full load) Dimension (L*W*H)
LF-FMR020YSIII 20 W 220-240 Vac 25-75 Vdc 200-350 mA 87% (230Vac) 0.94 (230Vac) 168*30*21 mm
LF-FMR040YSIII 40 W 220-240 Vac 40-130 Vdc 200-350 mA 91% (230Vac) 0.96 (230Vac) 168*30*21 mm
LF-FMR060YSIII  60 W 220-240 Vac 80-200 Vdc 200-350 mA 93% (230Vac) 0.96 (230Vac) 210*30*21 mm
LF-FMR080YSIII 80 W 220-240 Vac 54-230 Vdc 200-550 mA 94% (230Vac) 0.97 (230Vac) 210*30*21 mm
LF-FMR120YSIII 120 W 220-240 Vac 54-230 Vdc 300-750 mA 94% (230Vac) 0.98 (230Vac) 280*30*21 mm
