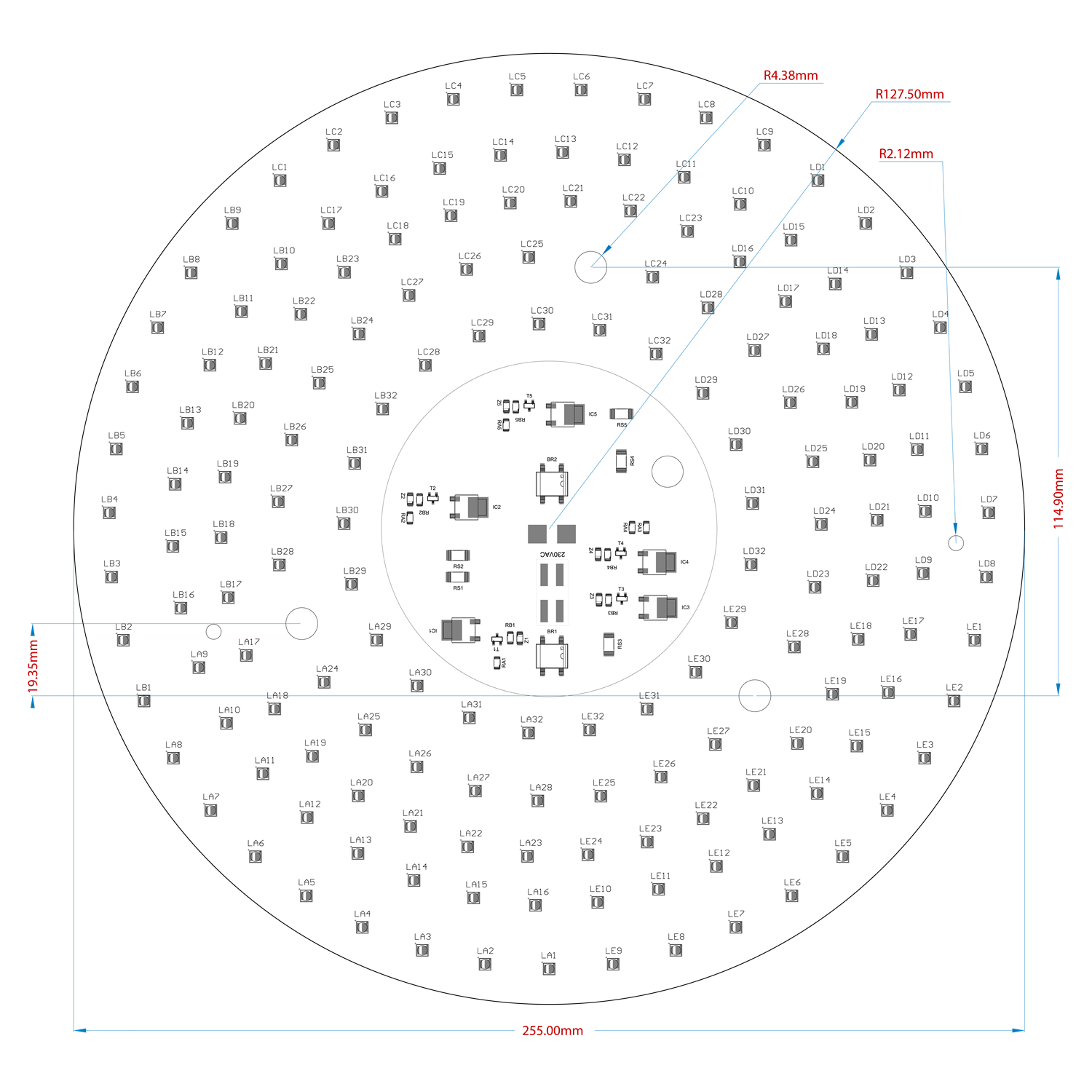

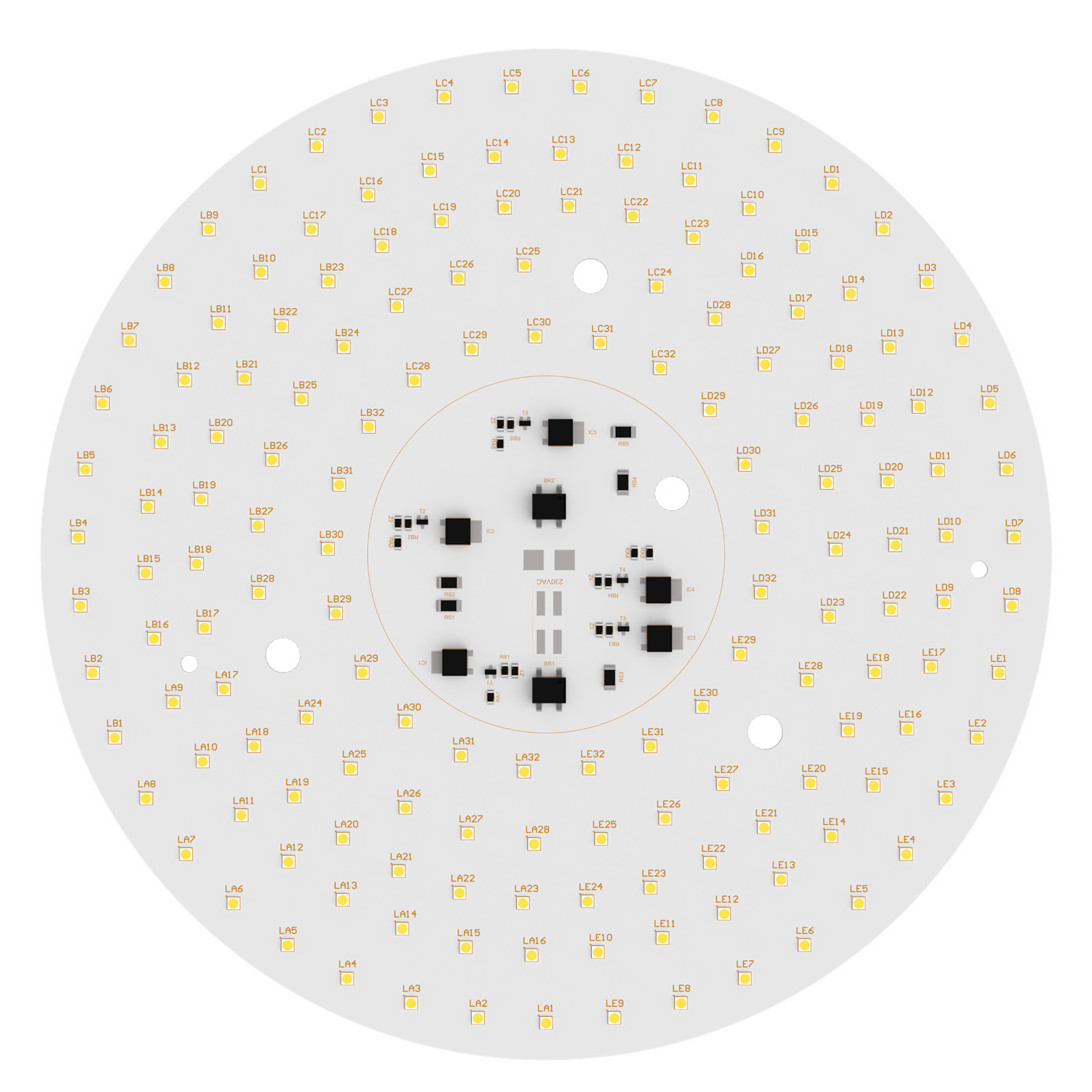

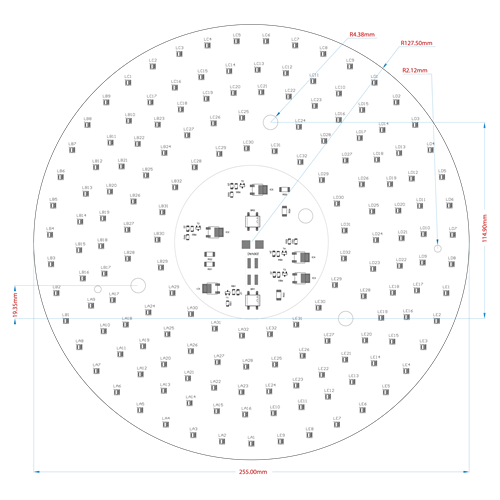

EC-R255-0820-LS30-AC
EC-R255-0820-LS30-AC
Previous Next
Click for view
EC-R255-0820-LS30-AC
Lumileds Luxeon 3030 2D
Constant Color, MacAdams Step 3
Substrate:ALU
PCB Thickness:1.6 mm
Copper Weight:35μm
Surface Treatment:HASL
Thermal Conductivity:1W/mk
Breakdown Voltage:2000V
No Connector
P5B52HP2 Mosfet
DF10S 0.5A Diode
BC817 Transistor
Diode Zener 0.5W 7V5
  • UL
  • RoHS
  • ESD
  • ENERGY
Module Code EC-R255-0820-LS30-AC
PCB Material ALU
Serial 8 Operating Temperature(°C) -40 ~ +85
Parallel 20 Storage Temperature(°C) -40 ~ +85
LED Quantity 160 Thermal Conductivity(W/m-k) 1W/mk

LUMILEDS LED L130-4080003000X21
Correlated Color Temperature (CCT) 4000K
Color Rendering Index (CRI) 80
Module Operating Current (mA) 1500 1500 1500
Module Operating Voltage (VAC) 230,00 230,00 230,00
Module Light Output (lm) 12740 12740 12740
Module Power (W) 72,00 72,00 72,00
Module Efficiency (lm/W) 176,9 176,9 176,9
