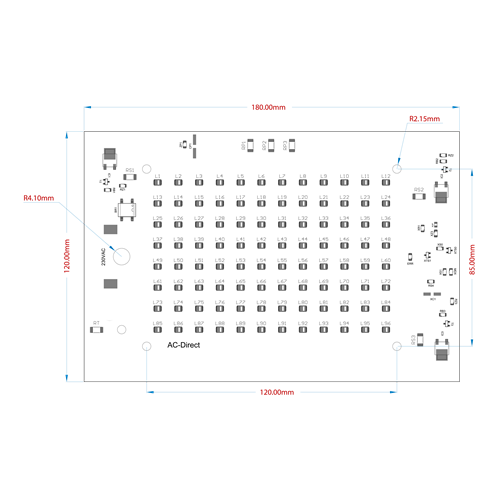

EL-180x120-3203-L128
Lumileds 2835RB 6V
Constant Color, MacAdams Step 3
Substrate:ALU
PCB Thickness:1.6 mm
Copper Weight:35μm
Surface Treatment:HASL
Thermal Conductivity:1W/mk
Breakdown Voltage:2000V
No Connector
P5B52HP2 Mosfet
DF10S 0.5A Diode
BC817 Transistor
Diode Zener 0.5W 7V5
100uF Capacitor
Diode Zener 1W 100V DO214AC-BZG03C100TR
270V Zener DO-214AC SMA-BZG03C270TR
Red Led 1206
  • UL
  • RoHS
  • ESD
  • ENERGY
Module Code EL-180x120-3203-L128
PCB Material ALU
Serial 32 Operating Temperature(°C) -40 ~ +85
Parallel 3 Storage Temperature(°C) -40 ~ +85
LED Quantity 96 Thermal Conductivity(W/m-k) 1W/mk

LUMILEDS LED L128-4080RB35000M1
Correlated Color Temperature (CCT) 4000K
Color Rendering Index (CRI) 80
Module Operating Current (mA) 520 520 520
Module Operating Voltage (VAC) 230,00 230,00 230,00
Module Light Output (lm) 10411 10411 10411
Module Power (W) 99,84 99,84 99,84
Module Efficiency (lm/W) 104,3 104,3 104,3
