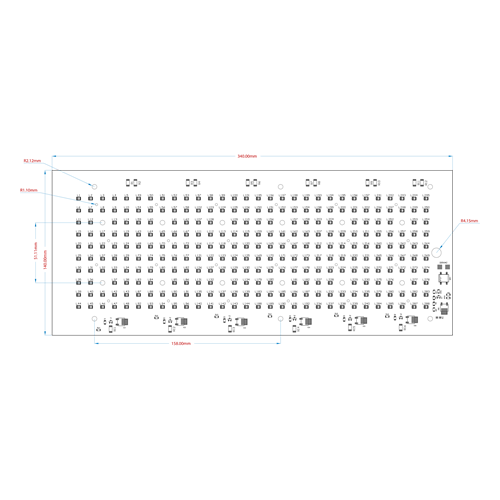

EL-340X140-2412-L128-AC
Lumileds 2835RB 6V
Constant Color, MacAdams Step 3
Substrate:ALU
PCB Thickness:1.6 mm
Copper Weight:35μm
Surface Treatment:HASL
Thermal Conductivity:1W/mk
Breakdown Voltage:2000V
No Connector
P5B52HP2 Mosfet
DF10S 0.5A Diode
BC817 Transistor
Diode Zener 0.5W 7V5
  • UL
  • RoHS
  • ESD
  • ENERGY
Module Code EL-340X140-2412-L128-AC
PCB Material ALU
Serial 24 Operating Temperature(°C) -40 ~ +85
Parallel 12 Storage Temperature(°C) -40 ~ +85
LED Quantity 288 Thermal Conductivity(W/m-k) 1W/mk

LUMILEDS LED L128-4080RB35000M1
Correlated Color Temperature (CCT) 4000K
Color Rendering Index (CRI) 80
Module Operating Current (mA) 1700 1700 1700
Module Operating Voltage (VAC) 220,00 220,00 220,00
Module Light Output (lm) 32241 32241 32241
Module Power (W) 244,80 244,80 244,80
Module Efficiency (lm/W) 131,7 131,7 131,7
