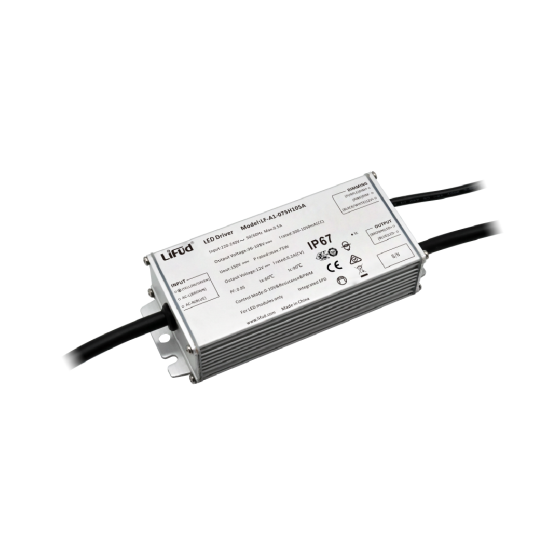

LF-A1-xxxH&UxxxA&C
Programmable IP67 Isolated LED Driver
Parameters
Operating voltage: 120-277Vac; 220-240Vac
Output power: 10.8-240W
Output voltage: 36-356Vdc
Features
1. 0-10V/PWM/Rx dimming +12V(A); 0-10V dimming(C)
2. Output current and parameters adjustable via programmer (LF-SCS080C)
3. Dim to off; standby consumption<0.5W
4. Surge protection: L-N 6KV; L/N-GND 10KV
5. Support time dimming
Warranty
5 years
Certifications
TUV-ENEC, CE, RCM, CB, FCC, UL
Applications
Street light, flood light, wall light, shoebox light,etc
  • UL
  • ENEC
Model Output Power Input Voltage Output Voltage Output Current Efficiency (full load) PF (full load) Dimension (L*W*H)
LF-A1-075U105A/C 75 W 120-277 Vac 36-108Vdc 300-1050 mA 91.5% 0.9 155.6*64.2*35.5
LF-A1-075H105A/C 75 W 220-240 Vac 36-108Vdc 300-1050 mA 91% 0.9 154.4*67.4*37.4
LF-A1-100H105A/C 100 W 220-240 Vac 48-144Vdc 300-1050 mA 91% 0.9 154.4*67.4*37.4
LF-A1-100U105A/C 100W 120-277Vac 48-144Vdc 300-1050 mA 91% 0.9 170.6*64.2*35.5
LF-A1-150H105A/C 150 W 220-240 Vac 72-214Vdc 300-1050 mA 92% 0.9 182.4*67.4*39.9
LF-A1-150U105A/C 150 W 120-277Vac 72-214Vdc 300-1050 mA 92% 0.9 182.4*67.4*39.9
LF-A1-200U105A/C 200 W 120-277Vac 130-286Vdc 300-1050 mA 93% 0.9 221.4*67.4*39.9
LF-A1-240U105A/C 240W 120-277Vac 160-356Vdc 300-1050 mA 94% 0.9 221.4*67.4*39.9
