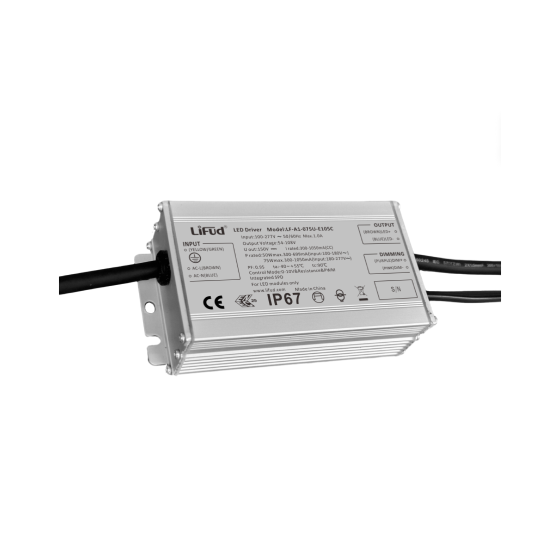

LF-A1-xxxU-E105C(67)
Dimmable Programmable IP67 Isolated Driver
Parameters
Operating voltage: 90-305Vac
Output power: 40-240W
Output voltage: 36-343Vdc
Features
1. Current adjustable via Lifud programmer
2. All-round protections: OTP, OVP, UVP, short circuit
3. Protection: L-N 6kV, L/N-GND 10kV (75~240W); L-N 4kV, L/N-GND 6kV (40/60W)
4. 0-10V, PWM, Rx, and time control dimming methods optional
5. IP67
Warranty
5 years
Certifications
ENEC, CE, CB, RCM
Applications
Street light
  • ENEC
Model Output Power Input Voltage Output Voltage Output Current Efficiency (full load) PF (full load) Dimension (L*W*H)
LF-A1-040U-E080C 90-305 40 36-72 0.3-0.8 89% 0.9 120*66*37
LF-A1-060U-E110C 90-305 60 43-90 0.3-1.1 89% 0.9 120*66*37
LF-A1-075U-E105C 90-305 75 54-108 0.3-1.05 91% 0.9 130*66*37
LF-A1-100U-E105C 90-305 100 72-144 0.3-1.05 91% 0.9 135*66*37
LF-A1-150U-E105C 90-305 150 108-214 0.3-1.05 92% 0.9 170*66*39
LF-A1-200U-E105C 90-305 200 156-286 0.3-1.05 93% 0.9 177*66*39
LF-A1-240U-E105C 90-305 240 171-343 0.3-1.05 94% 0.9 192*66*39
