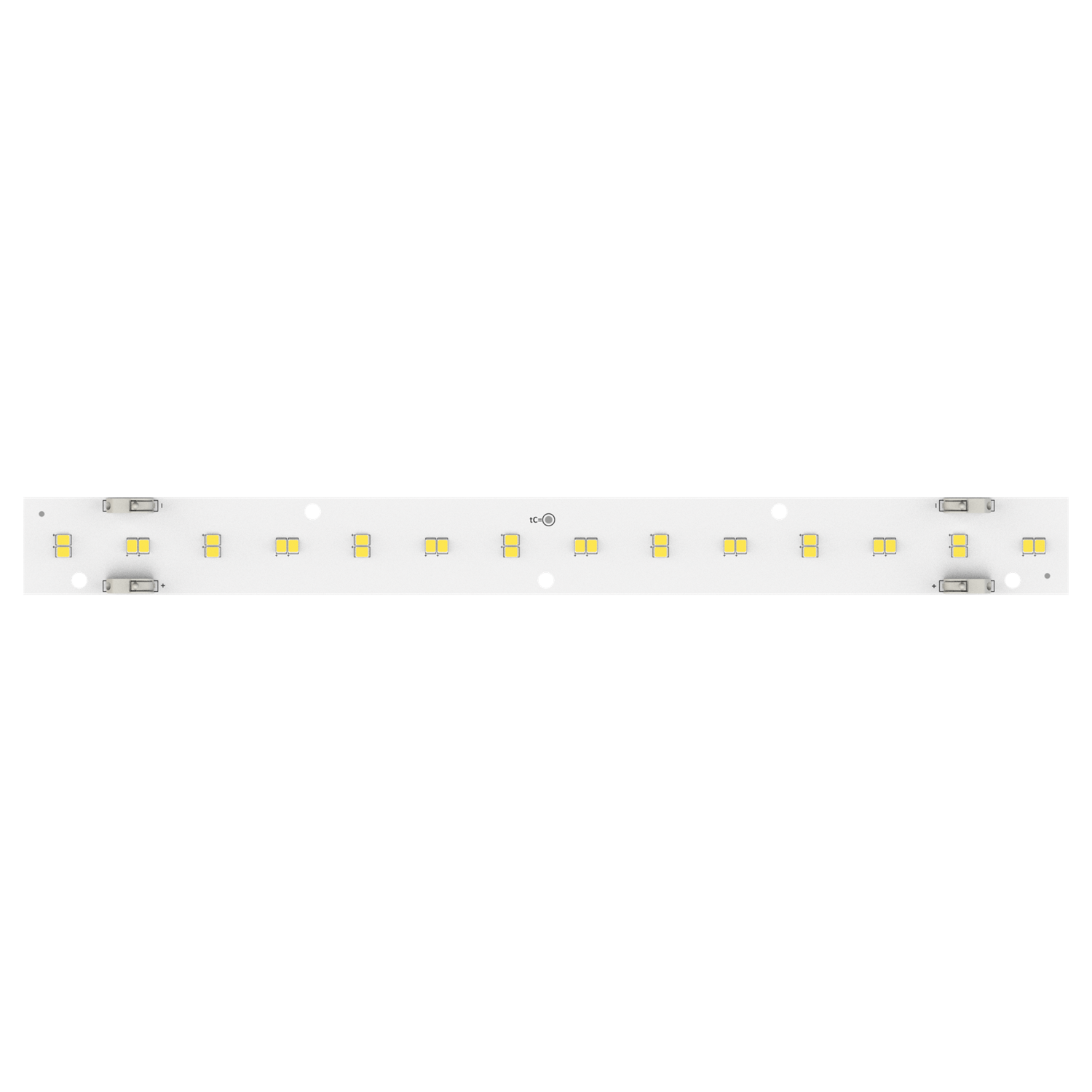

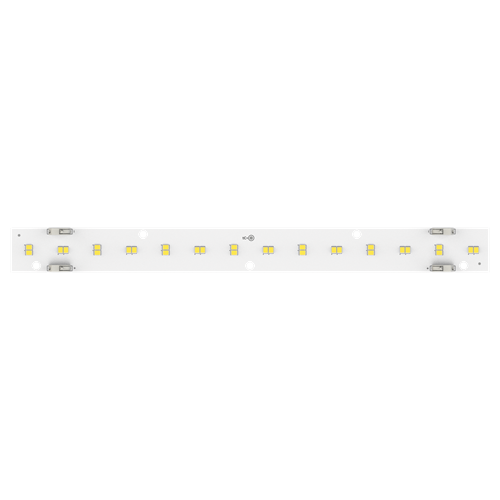

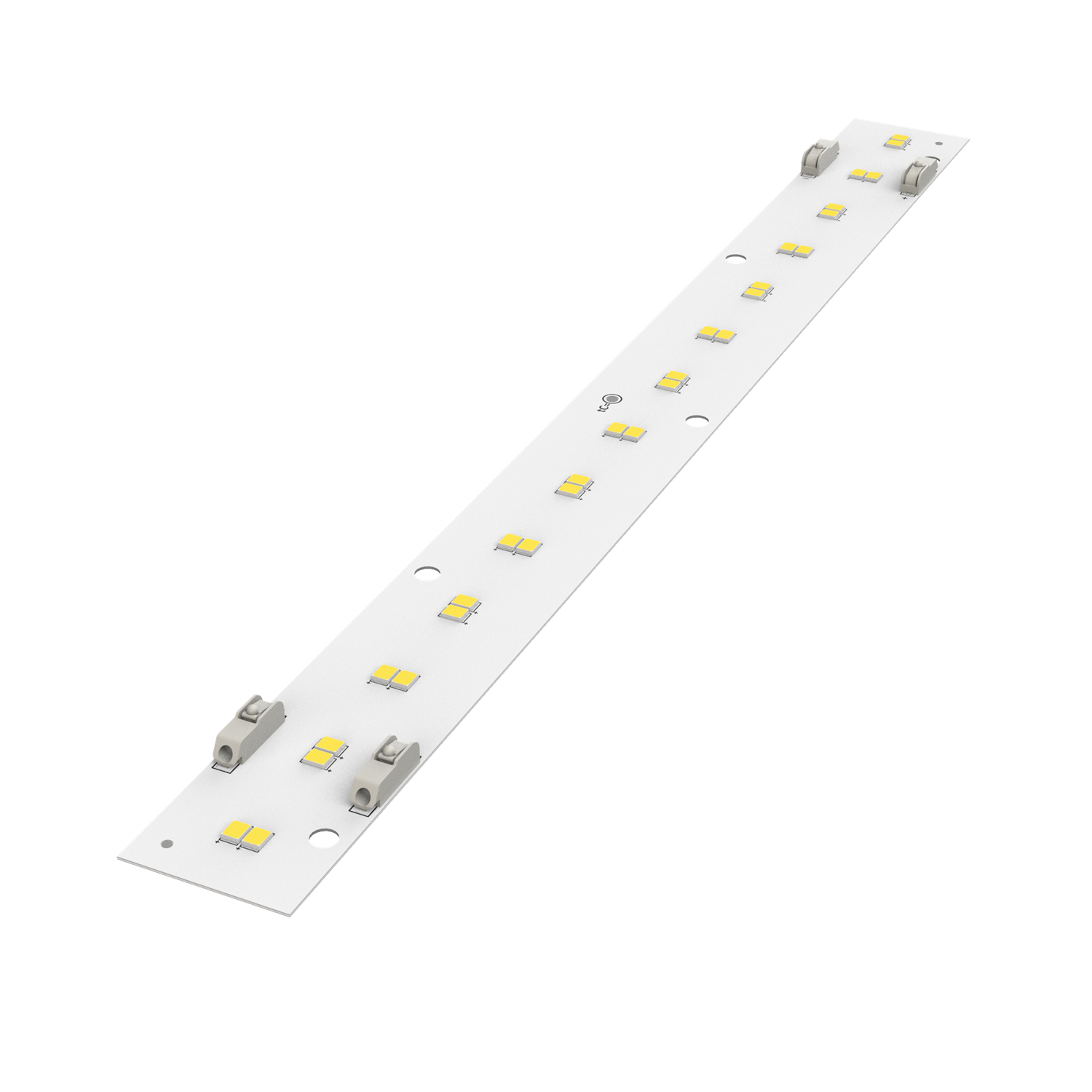

CLAUDIA-1402-L128
Stock Code: A001039
Constant Color , MacAdams Step 3 Homogeneous illumination
PCB Materiel Aluminum 1.6 mm, Optional Selection
Substrate : ALU/FR4/CEM1/CEM3
PCB Thickness : 1.0/1.6 mm
Copper Weight : 35Um/70Um
Surface Treatment : HASL/OSP
Thermal Conductivity : 1W/1.2W/1.5W/2W
Breakdown voltage : 2000V
  • UL
  • RoHS
  • ESD
  • ENERGY
Module Code CLAUDIA-1402-L128
PCB Material ALU/FR4/CEM1/CEM3
Serial 14 Operating Temperature(°C) -40 ~ +85
Parallel 2 Storage Temperature(°C) -40 ~ +85
LED Quantity 28 Thermal Conductivity(W/m-k) 1W/mk

LED L128-4080SA35A00A1
Correlated Color Temperature (CCT) 4000K
Color Rendering Index (CRI) 80
Module Operating Current (mA) 100 150 200
Module Operating Voltage (V) 38,22 38,78 39,48
Module Light Output (lm) 760 1114 1451
Module Power (W) 3,82 5,82 7,90
Module Efficiency (lm/W) 198,8 191,5 183,8
