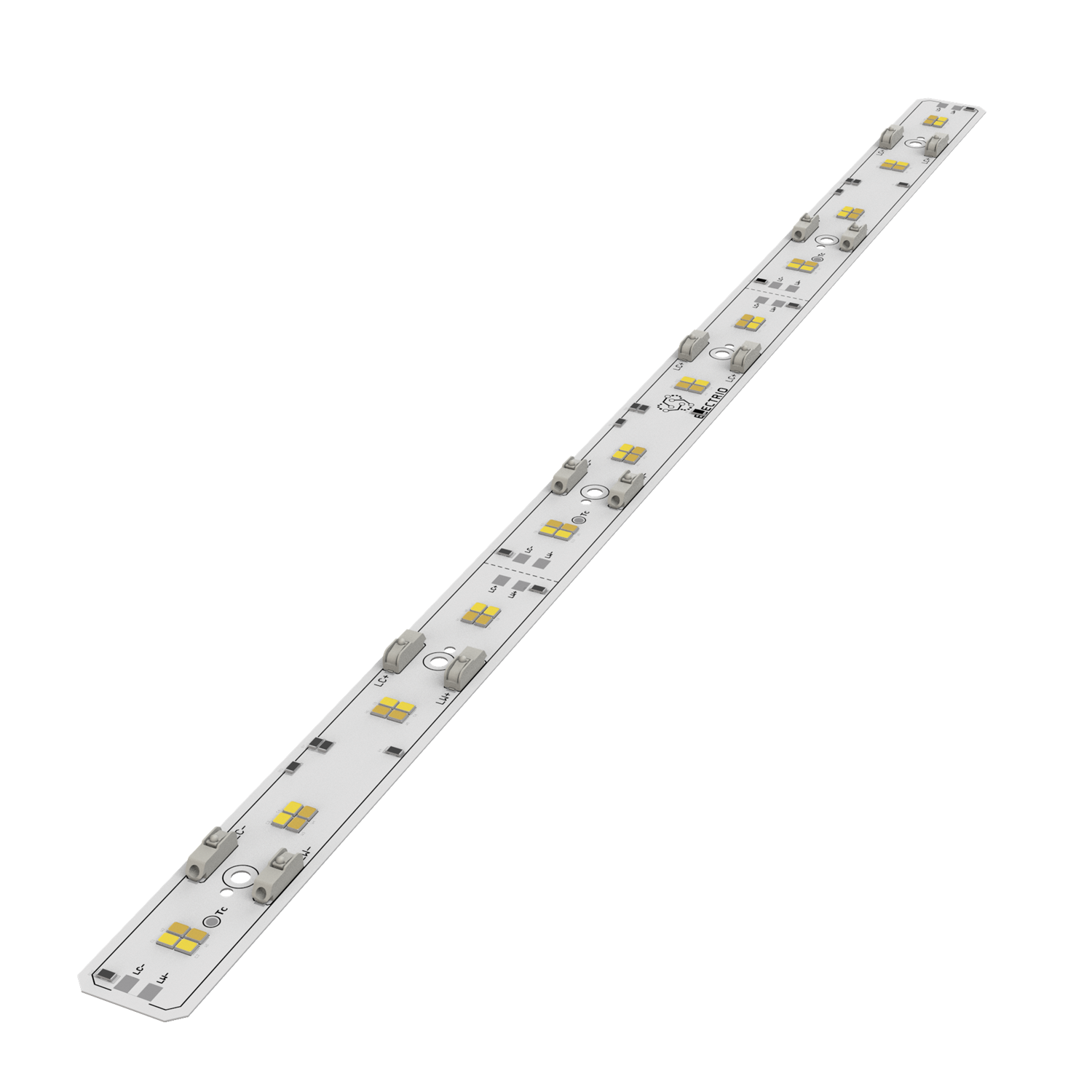

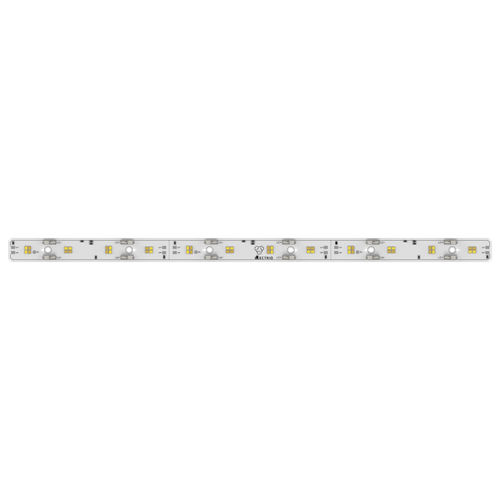

DAISY-4X1-1202-L128-TN
Stock Code: A001009
Constant Color , MacAdams Step 3 Homogeneous illumination
PCB Materiel Aluminum 1.6 mm, Optional Selection
Substrate : ALU/FR4/CEM1/CEM3
PCB Thickness : 1.0/1.6 mm
Copper Weight : 35Um/70Um
Surface Treatment : HASL/OSP
Thermal Conductivity : 1W/1.2W/1.5W/2W
Breakdown voltage : 2000V
  • UL
  • RoHS
  • ESD
  • ENERGY
Module Code DAISY-4X1-1202-L128-TN
PCB Material FR4
Serial 12 Operating Temperature(°C) -40 ~ +85
Parallel 2 Storage Temperature(°C) -40 ~ +85
LED Quantity 48 Thermal Conductivity(W/m-k) 1W/mk

LUMILEDS LED L128-4080SA35A00A1
Correlated Color Temperature (CCT) 2700K
Color Rendering Index (CRI) 80
Module Operating Current (mA) 150 250 350
Module Operating Voltage (V) 33,24 34,32 35,28
Module Light Output (lm) 888 1427 1931
Module Power (W) 4,99 8,58 12,35
Module Efficiency (lm/W) 178,10 166,32 156,38

LED L128-4080SA35A00A1
Correlated Color Temperature (CCT) 6500K
Color Rendering Index (CRI) 80
Module Operating Current (mA) 150 250 350
Module Operating Voltage (V) 33,24 34,32 35,28
Module Light Output (lm) 941 1505 2030
Module Power (W) 4,99 8,58 12,35
Module Efficiency (lm/W) 188,73 175,41 164,40
