STRADELLA-IP-28-T2-0704-LS30
STRADELLA-IP-28-T2-0704-LS30
STRADELLA-IP-28-T2-0704-LS30
Previous Next
Click for view

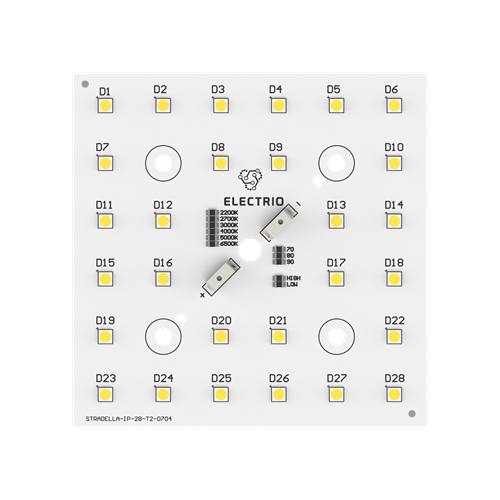

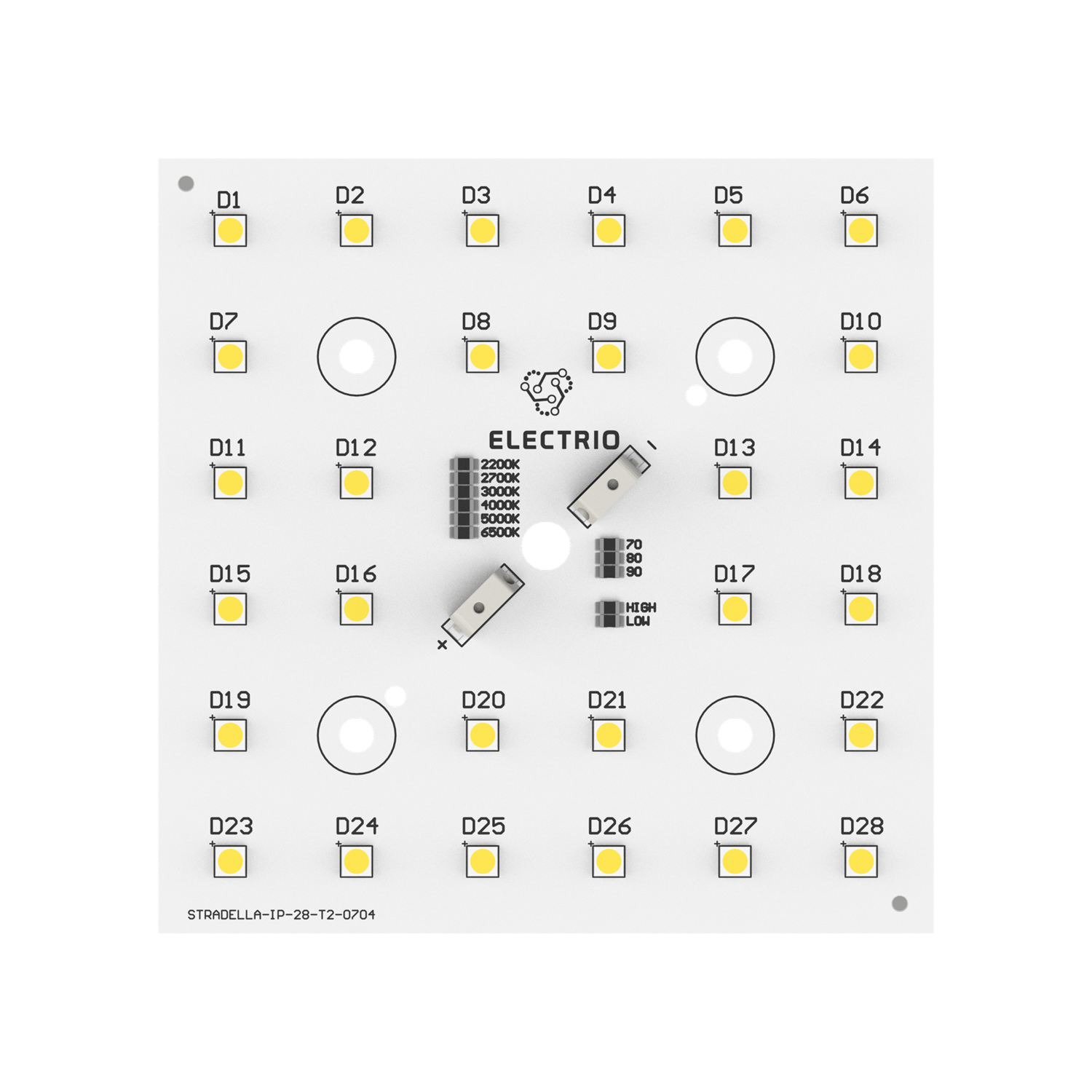

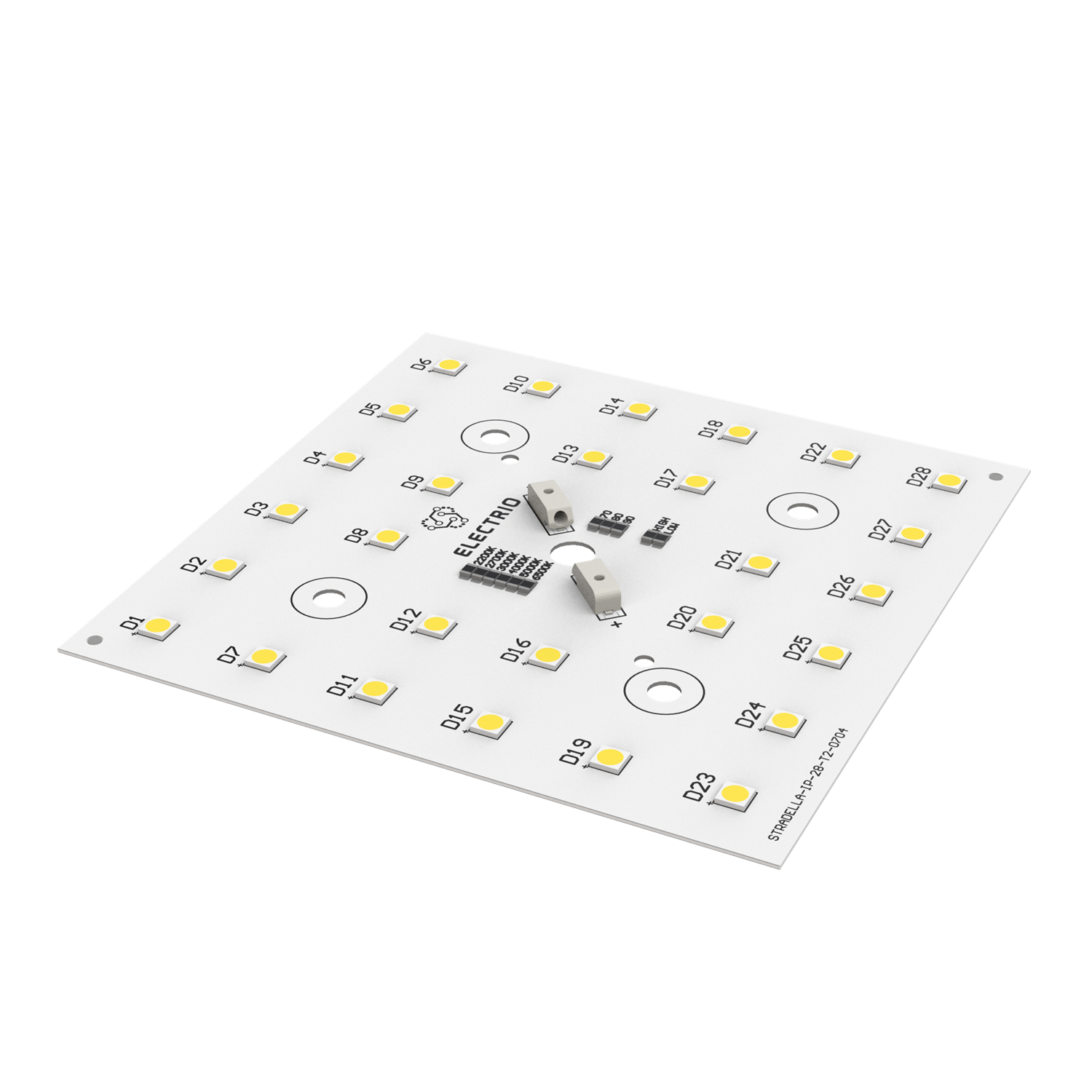

STRADELLA-IP-28-T2-0704-LS30
Stock Code: A001037
Constant Color , MacAdams Step 3 Homogeneous illumination
PCB Materiel Aluminum 1.6 mm, Optional Selection
Substrate : ALU/FR4/CEM1/CEM3
PCB Thickness : 1.0/1.6 mm
Copper Weight : 35Um/70Um
Surface Treatment : HASL/OSP
Thermal Conductivity : 1W/1.2W/1.5W/2W
Breakdown voltage : 2000V
  • UL
  • RoHS
  • ESD
  • ENERGY
Module Code STRADELLA-IP-28-T2-0704-LS30
PCB Material ALU/FR4
Serial 7 Operating Temperature(°C) -40 ~ +85
Parallel 4 Storage Temperature(°C) -40 ~ +85
LED Quantity 28 Thermal Conductivity(W/m-k) 1W/mk

LED L130-4080003000X21
Correlated Color Temperature (CCT) 4000K
Color Rendering Index (CRI) 80
Module Operating Current (mA) 450 550 700
Module Operating Voltage (V) 41,58 42,42 43,68
Module Light Output (lm) 3235 3848 4702
Module Power (W) 18,71 23,33 30,58
Module Efficiency (lm/W) 172,9 164,9 153,8
