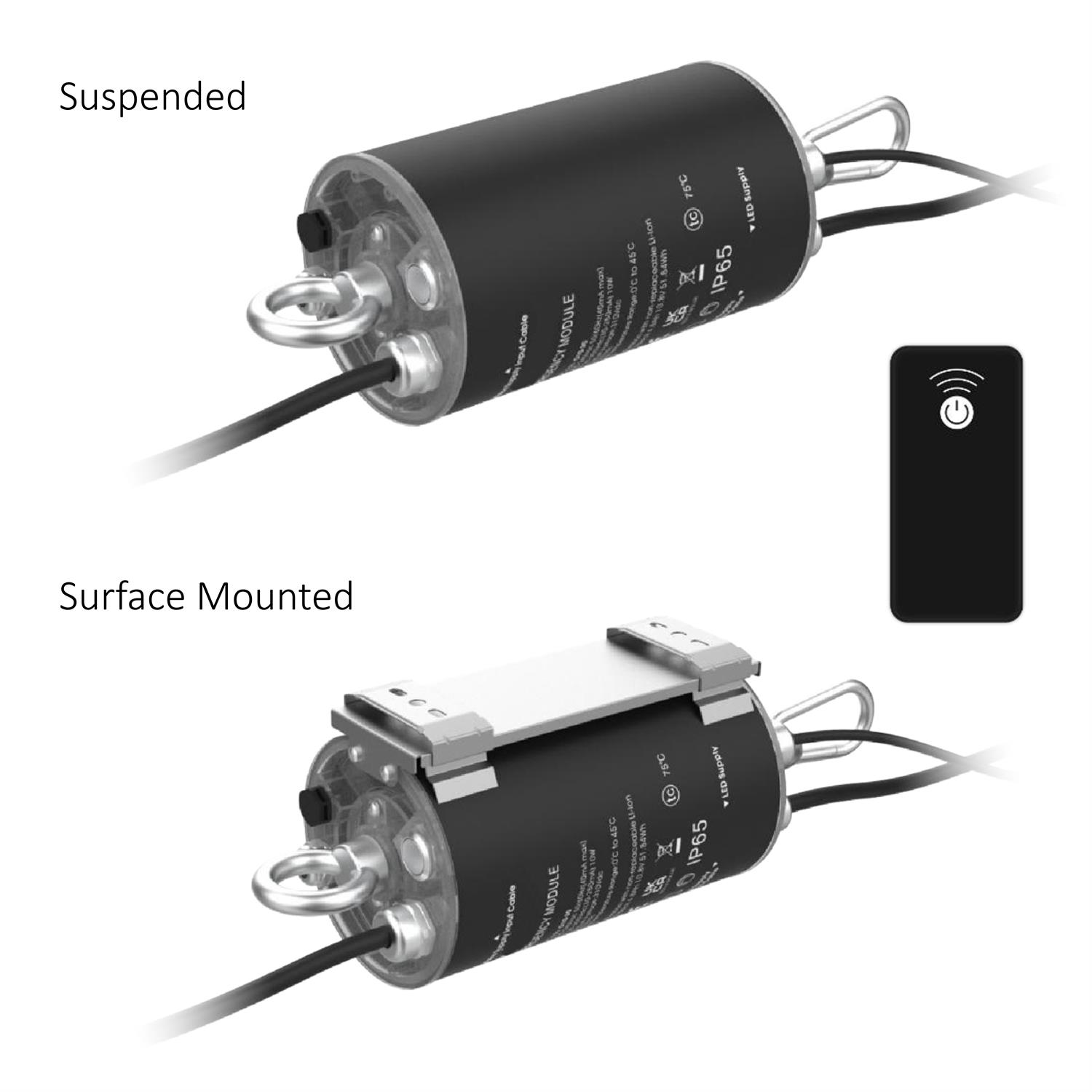

ELCEM A Highbay
EMERGENCY PACKS
For High Bay / Low Bay LED luminaires with supply connector
For LED modules with 30–300VDC forward voltage
For maintained or non-maintained emergency lighting systems
Automatic self-test per EN 62034 standard
Complies with EN 61347-1 and EN 61347-2-7 standards
Waterproof connector between LED and emergency module
Suitable for high-risk task area luminaires
Voltage change-over per EN 60598-2-22
1.5h or 3h rated emergency duration
Built-in non-replaceable LiFePO₄ battery pack
Full battery protection: over-charge, over-current, short-circuit, deep discharge
Manual or self-test selectable via DIP switch or test button
Bi-coloured LED indicator with automatic weekly and yearly tests
IP65 protection, independent operation, optional DALI 2 compatibility
  • DALI 2
Part Code Case Type Exact Rated
Emergency Power Voltage		 Output
Voltage		 Duration Battery Function Certificates
ELCEM-A10-15 Plastic 10w 30-300 1,5H C Manual
Self-test
DALI2		 CE
ELCEM-A10-30 Plastic 10w 30-300 3H C CE
ELCEM-A20-15 Plastic 20w 30-300 1,5H C CE
ELCEM-A20-30 Plastic 20w 30-300 3H C CE
