ELCEM COMPACT B
EMERGENCY PACKS
For LED modules with a forward voltage of 30-180Vdc
For maintained or non-maintained emergency lighting systems
Conforms to EN 61347-1 and EN 61347-2-7

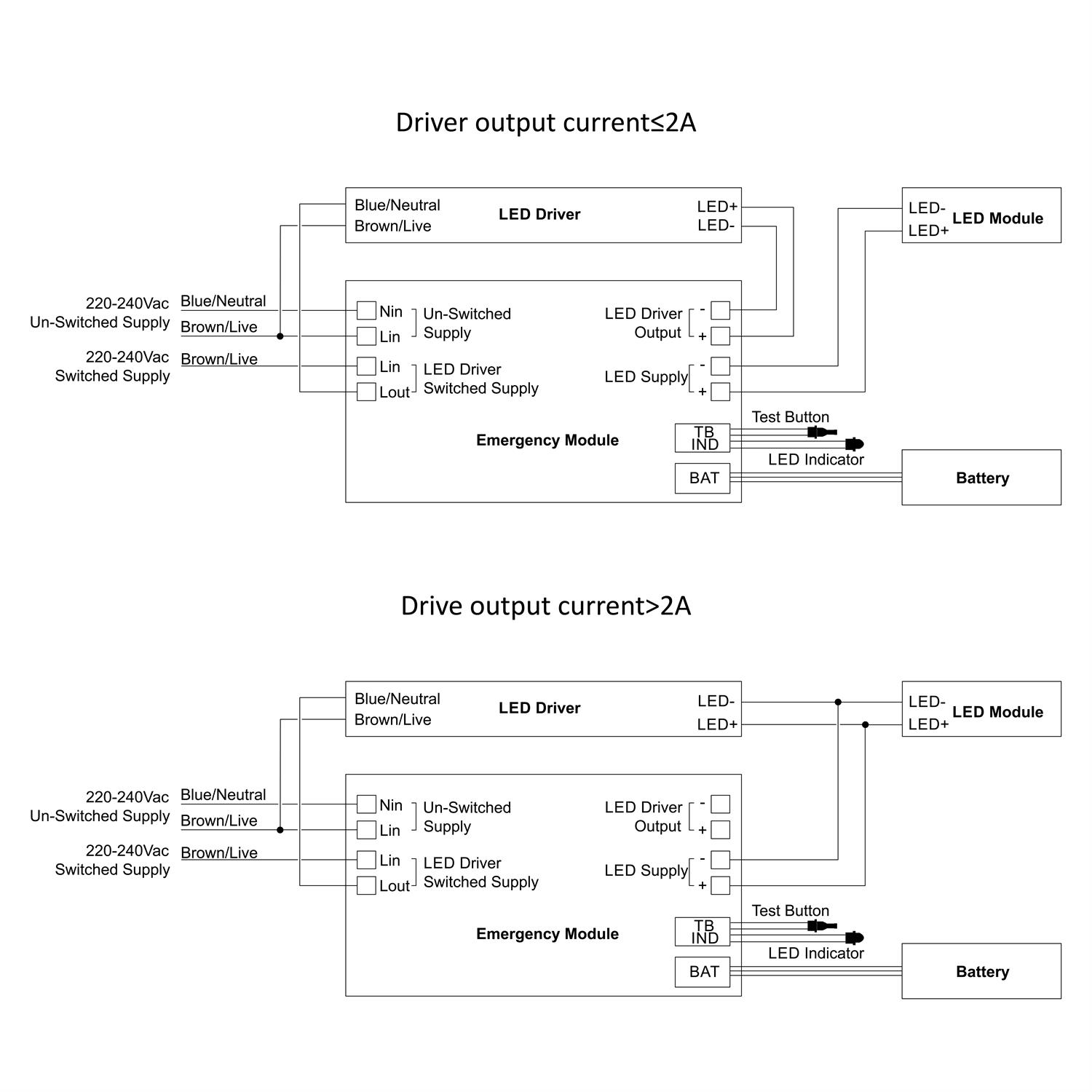

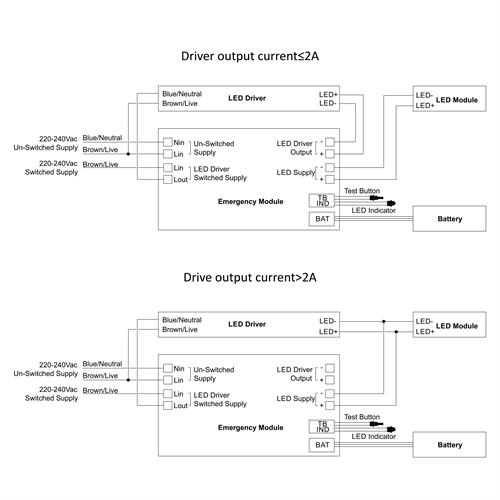

Wired between driver and LED module via terminals
Suitable for use in luminaires for high-risk task area lighting
Voltage change-over threshold according to EN 60598-2-22
1.5 hours or 3 hours rated duration
Replaceable internal LiFePO4 battery pack
Over-charge, over-current, short-circuit and deep discharge
protection for battery
Green status LED indicator
Constant power output
For built-in
Battery charging temperature control
Part Code Case Type Exact Rated
Emergency Power Voltage		 Output
Voltage		 Duration Battery Function Certificates
ELCEM-CB01-15 Plastic 1,5w 24-190 1,5H  C Manual
Self-test		 CE
ELCEM-CB01-30 Plastic 1,5w 24-190 3H C CE
ELCEM-CB03-15 Plastic 3w 24-190 1,5H C CE
ELCEM-CB03-30 Plastic 3w 24-190 3H C CE
