For LED modules with a forward voltage of 24-190Vdc
For maintained or non-maintained emergency lighting systems
Conforms to EN 61347-1and EN 61347-2-7

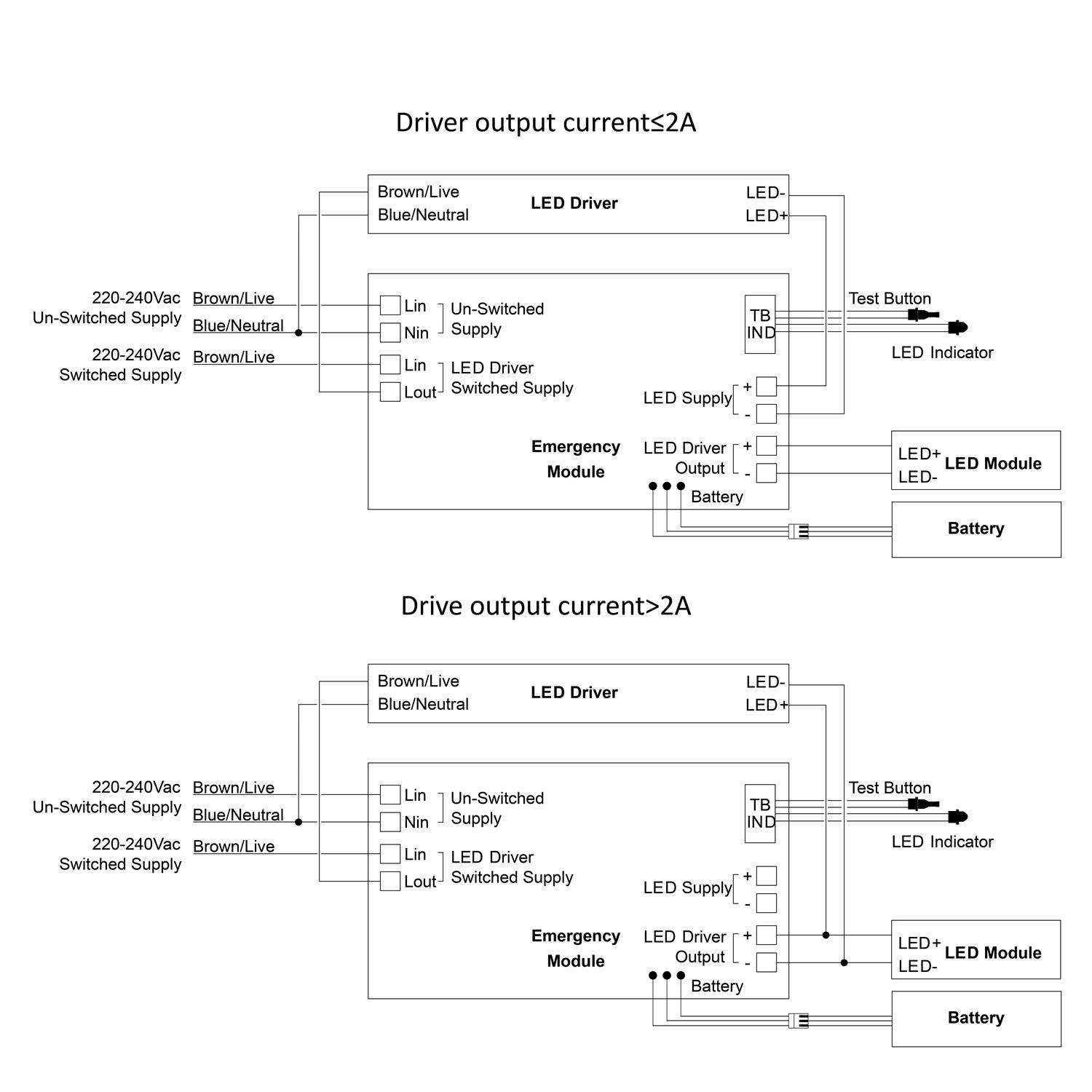

Wired between driver and LED module via internal terminals
Suitable for use in luminaires for high-risk task area lighting
Voltage change-over threshold according to EN 60598-2-22
1.5 hours or 3 hours rated duration
Replaceable internal LiFePO4 battery pack
Over-charge, over-current, short-circuit and deep discharge
protection for battery
Triple-press test button to change test mode (self-test version)
Double-press test button to change duration test interval
(26 weeks/52 weeks) (self-test version)
Bi-coloured status LED indicator
Weekly function test and yearly/semi-yearly duration test for
self-test mode
Constant power output
For built-in
Battery charging temperature control
