ELCEM PLUS MAINS
EMERGENCY PACKS
A mains DC voltage output 30-300Vdc
For maintained emergency lighting systems
Conforms to EN 61347-1 and EN 61347-2-7

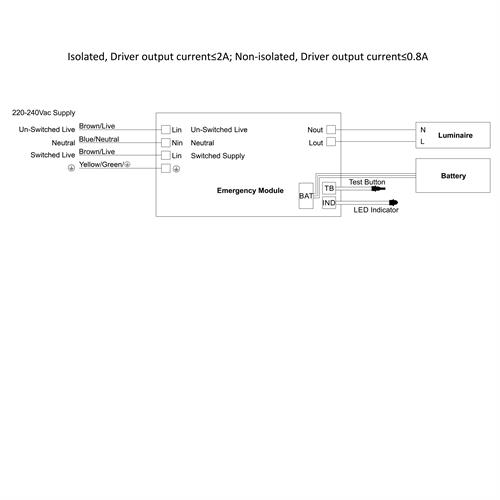

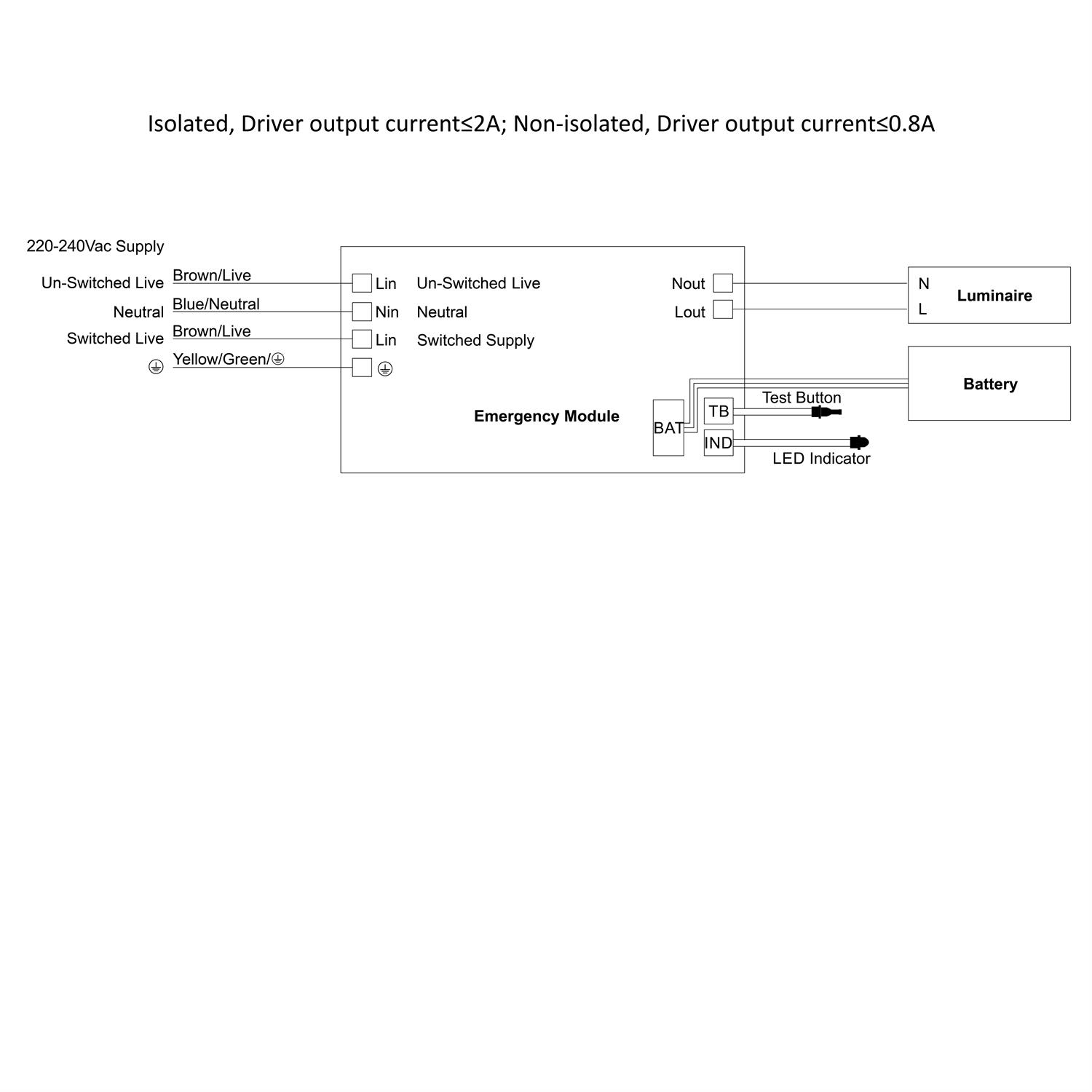

Wired between luminaire driver via terminals
Suitable for use in luminaires for high-risk task area lighting
Voltage change-over threshold according to EN 60598-2-22
3 hours rated duration
Replaceable LiFePO4 battery pack
Over-charge, over-current, short-circuit and deep discharge
protection for battery
Green status LED indicator
Constant power output
For built-in
Battery charging temperature control

Part Code Case Type Exact Rated
Emergency Power Voltage		 Output
Voltage		 Duration Battery Function Certificates
ELCEM-PM0330/MC Metal 3w 30-300 3H 2IFpR19/66 2.0Ah 6.4V Manual
Self-test		 CE
ELCEM-PM0530/MC Metal 5w 30-300 3H 2IFpR19/66-2 4.0Ah 6.4V CE
