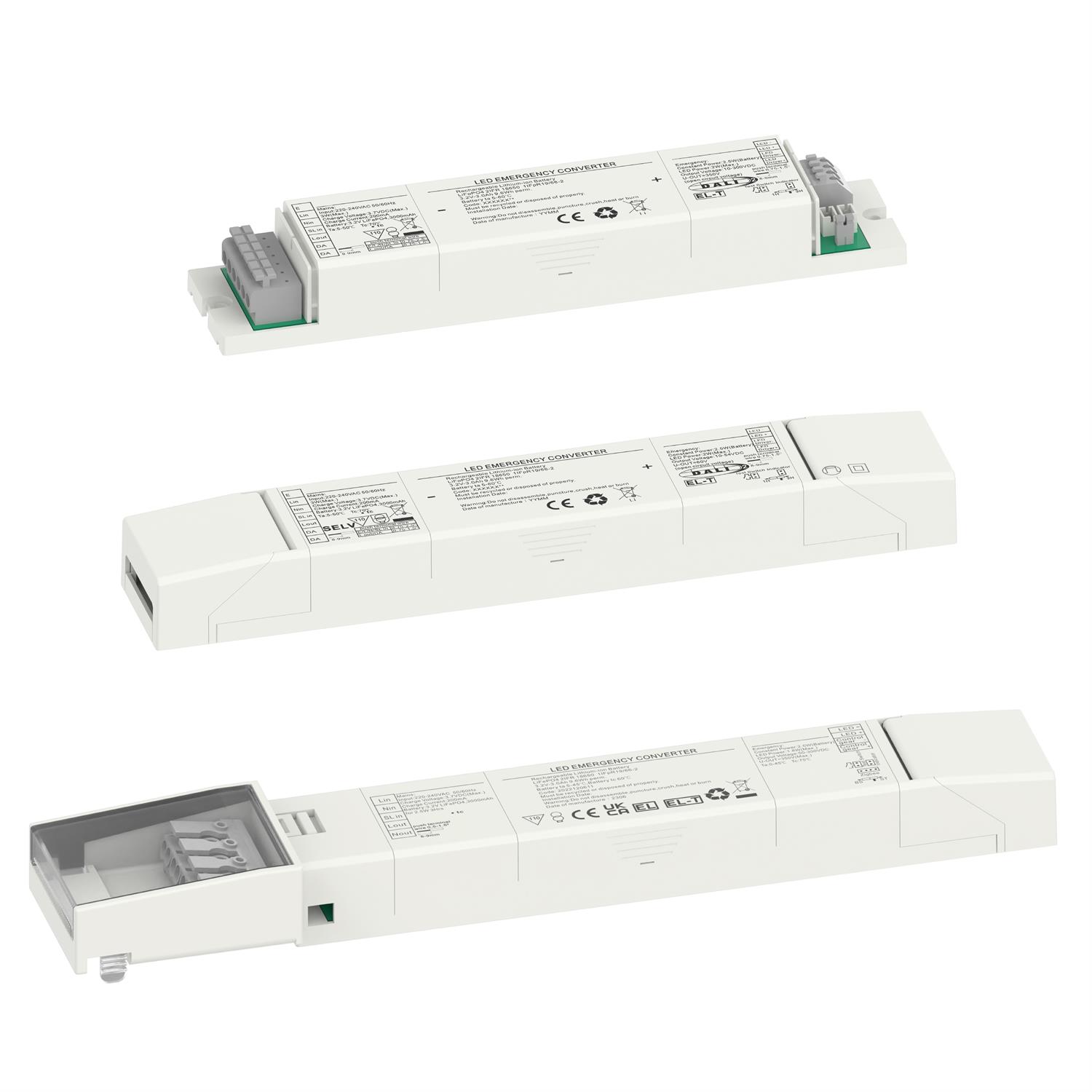

ELCEM300(A/L/LA)

EMERGENCY PACKS

Automatic shutdown of output if LED Ioad is out of range
Deep discharge protection
Short-circuit-proof battery connection
Open-circuit-proof
Polarity reversal protection for battery
EEC111L is SELV output voltage
1-3h rated duration
Self Test Emergency System
Rated supply voltage 220~240VAC
5-year guarantee (battery 3-year guarantee)
For LED module with a forward voltage of 10-90/20-90/60-250/240-430VDC
Constant power output,output current self-adjustable
LiFePO4 with longer life
Build-in Emergency converter
Telecomando 1-12V Signal Switch

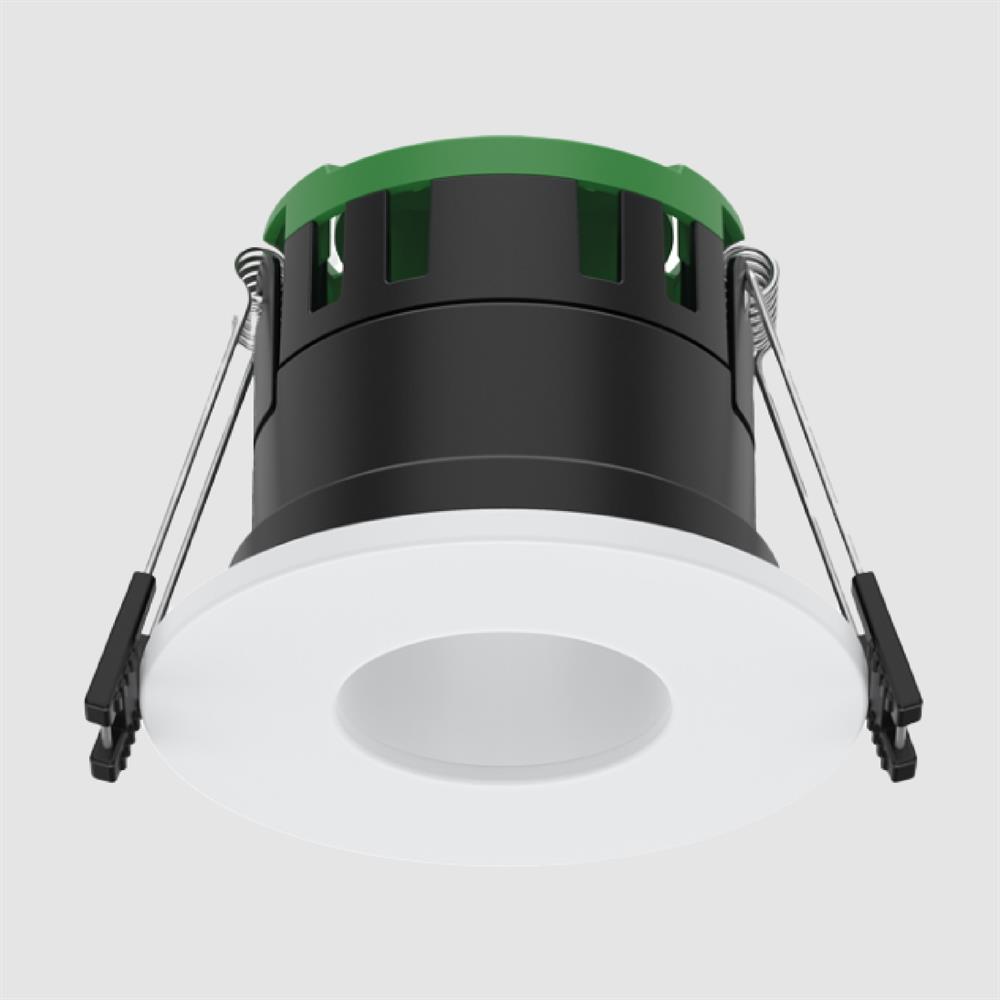

Applications

Get Offer

Part Code	Input Voltage	Output Power	Lumen Output (O/C)	Charge Duration	Duration	Battery	Function
ELCEM300-2.5W-1/3H	220-240V	2.5W	10VDC-300VDC	16H	1/3H	3.2V 1500/3000mAh LiFePO4	BS ST DALI-2 IOT/ZB IOT/BM
ELCEM300-3.5W-2H	220-240V	3.5W	10VDC-300VDC	16H	2H	3.2V 3000mAh LiFePO4
ELCEM300-5W-1H	220-240V	5W	10VDC-300VDC	16H	1H	3.2V 3000mAh LiFePO4
ELCEM300A-2.5W-1/3H	220-240V	2.5W	10VDC-300VDC	16H	1/3H	3.2V 1500/3000mAh LiFePO4
ELCEM300A-3.5W-2H	220-240V	3.5W	10VDC-300VDC	16H	2H	3.2V 3000mAh LiFePO4
ELCEM300A-5W-2H	220-240V	5W	10VDC-300VDC	16H	1H	3.2V 3000mAh LiFePO4
ELCEM300L-2.5W-1/3H	220-240V	2.5W	10VDC-54VDC	16H	1/3H	3.2V 1500/3000mAh LiFePO4
ELCEM300L-3.5W-2H	220-240V	3.5W	10VDC-54VDC	16H	2H	3.2V 3000mAh LiFePO4
ELCEM300L-5W-1H	220-240V	5W	10VDC-54VDC	16H	1H	3.2V 3000mAh LiFePO4
ELCEM300LA-2.5W-1/3H	220-240V	2.5W	10VDC-54VDC	16H	1/3H	3.2V 1500/3000mAh LiFePO4
ELCEM300LA-3.5W-2H	220-240V	3.5W	10VDC-54VDC	16H	2H	3.2V 3000mAh LiFePO4
ELCEM300LA-5W-1H	220-240V	5W	10VDC-54VDC	16H	1H	3.2V 3000mAh LiFePO4
